Belden 83029 0101000 Lead Wire, #18 Str SPC, TFE Ins, AWM 1180
High Temp Plastic Lead Wire, 18AWG (19x30) Silver Plated Copper, TFE Insulation, AWM 1180 300V 200C TYPE EE MIL-W-16878/5 1000V 200C
Ordering Details
- Manufacturer Part Number: 83029 0101000
- Color: Black
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825399568
- Manufacturer Footnote: S W
Supplied as one 1,000 ft Reel.

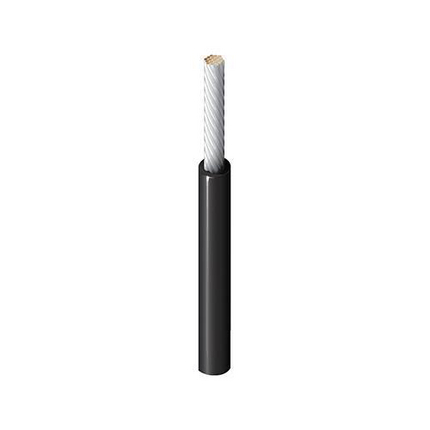

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: high temperature, inter-connection circuits, internal wiring of computer and electronic equipments, (Type EE) MIL-W-16878/5 applications
Construction Details
- Element: Conductor(s); No. of Elements: 1; Size: 18 AWG; Stranding: 19x30; Material: SC - Silvered Copper
- Material: PTFE - Polytetrafluoroethylene; Nom. Thickness: 0.015 in (0.38 mm); Nom. Insulation Diameter: 0.0765 in (1.94 mm)
- Overall Cable Diameter (Nominal): 0.0765 in (1.94 mm)
Electrical Characteristics
- Nom. Conductor DCR: 5.75 Ohm/1000ft; Max. Current: Mil-Std-975M Table 3.16 (single wire): 9.2 A
- UL Voltage Rating: 300 V RMS (UL AWM 1180), 1000 V RMS (Mil-W-16878/5)
Mechanical Characteristics
- UL Temperature: 200°C; Operating: -70°C To +200°C
- Stationary Min.: 0.76 in (19 mm); Installation Min.: 0.76 in (19 mm)
- Max. Pull Tension: 24 lbs (11 kg)
- Bulk Cable Weight: 9 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor, Outdoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: VW-1
- AWM Compliance: AWM 1180
- NEMA Compliance: HP3
- Military Compliance: MIL-W-16878/5
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.487 Revision Date: 02-20-2026
- Footnote: S - STRIPING ADDERS FOR TYPES E AND EE: 1, 2, 3 STRIPES. MINIMUM ORDER 10,000' PER STRIPE COMBINATION. (SEE STRIPING ADDER TABLE), W - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 75'.
