Description
Belden 83008 003100 Lead Wire, #20 Str SPC, TFE Ins, AWM 1213
High Temp Plastic Lead Wire, 20AWG (7x28) Silver Plated Copper, TFE Insulation, AWM 1213 105C TYPE E MIL-W-16878/4 600V 200C
Ordering Details
- Manufacturer Part Number: 83008 003100
- Color: Orange
- Length: 100 ft
- Put-Up: Reel
Supplied as one 100 ft Reel.

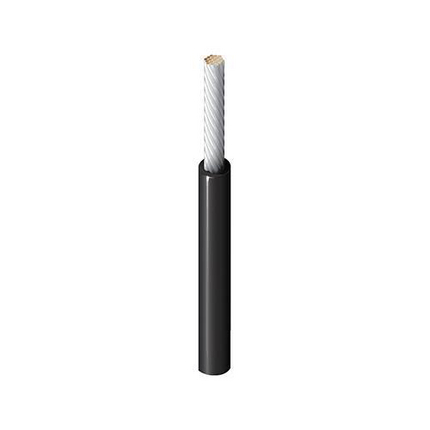

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: high temperature, inter-connection circuits, internal wiring of computer and electronic equipments, (Type E) MIL-W-16878/4 applications
Construction Details
- Element: Conductor(s); No. of Elements: 1; Size: 20; Stranding: 7x28; Material: SC - Silvered Copper
- Material: PTFE - Polytetrafluoroethylene; Nom. Thickness: 0.01 in (0.25 mm); Nom. Insulation Diameter: 0.058 in (1.5 mm)
- Overall Cable Diameter (Nominal): 0.058 in (1.5 mm)
Electrical Characteristics
- UL Voltage Rating: 600 V RMS
Mechanical Characteristics
- UL Temperature: 105°C
- Stationary Min.: 0.24 in (6.1 mm); Installation Min.: 0.24 in (6.1 mm)
- Max. Pull Tension: 12.6 lbs (5.72 kg)
- Bulk Cable Weight: 5.2 lbs/1000ft
Standards and Compliance
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: VW-1
- AWM Compliance: AWM 1213
- NEMA Compliance: HP3
- Military Compliance: MIL-W-16878/4
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
History
- Update and Revision: Revision Number: 0.459 Revision Date: 02-20-2026
- Footnote: S - STRIPING ADDERS FOR TYPES E AND EE: 1, 2, 3 STRIPES. MINIMUM ORDER 10,000' PER STRIPE COMBINATION. (SEE STRIPING ADDER TABLE), W - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 75'.
