Description
Belden 83002 010100 Lead Wire, #26 Str SPC, TFE Ins, AWM 1213
High Temp Plastic Lead Wire, 26AWG (7x34) Silver Plated Copper, TFE Insulation, AWM 1213 105C TYPE E MIL-W-16878/4 600V 200C
Ordering Details
- Manufacturer Part Number: 83002 010100
- Color: Black
- Length: 100 ft
- Put-Up: Reel
- UPC/EAN: 612825354864
- Manufacturer Footnote: E
Supplied as one 100 ft Reel.

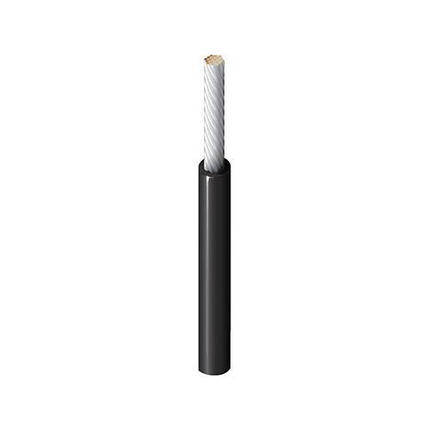

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: high temperature, inter-connection circuits, internal wiring of computer and electronic equipments, (Type E) MIL-W-16878/4 applications
Construction Details
- Element: Conductor(s); No. of Elements: 1; Size: 26 AWG; Stranding: 7x34; Material: SC - Silvered Copper
- Material: PTFE - Polytetrafluoroethylene; Nom. Thickness: 0.01 in (0.25 mm); Nom. Insulation Diameter: 0.039 in (0.99 mm)
- Overall Cable Diameter (Nominal): 0.039 in (0.99 mm)
Electrical Characteristics
- Nom. Conductor DCR: 37.5 Ohm/1000ft; Max. Current: Mil-Std-975M Table 3.16 (single wire): 2.5 A
- UL Voltage Rating: 600 V RMS
Mechanical Characteristics
- UL Temperature: 200°C; Operating: -70°C To +200°C
- Stationary Min.: 0.39 in (9.9 mm); Installation Min.: 0.39 in (9.9 mm)
- Max. Pull Tension: 5 lbs (2.3 kg)
- Bulk Cable Weight: 2 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor, Outdoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: VW-1
- AWM Compliance: AWM 1213
- NEMA Compliance: HP3
- Military Compliance: MIL-W-16878/4
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
History
- Update and Revision: Revision Number: 0.486 Revision Date: 02-20-2026
- Footnote: E - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'., S - STRIPING ADDERS FOR TYPES E AND EE: 1, 2, 3 STRIPES. MINIMUM ORDER 10,000' PER STRIPE COMBINATION. (SEE STRIPING ADDER TABLE)
