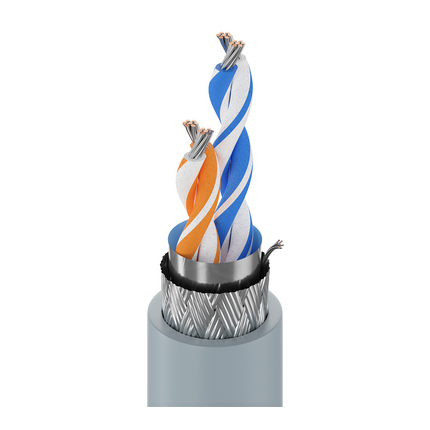

Belden 82842 877500 RS485, 2 Pr #24 Str TC, FEP Ins, OS+TC Brd, PVC Jkt, CMP - Natural

$4,420.99
SKU:
82842 877500
Shipping:
Calculated at Checkout
Color:
Natural
Manufacturer Status:
Active
Product Family:
82842
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 82842 877500 RS485, 2 Pr #24 Str TC, FEP Ins, OS+TC Brd, PVC Jkt, CMP

RS-485, 2 Pair 24AWG (7x32) Tinned Copper, FEP Insulation, Overall Beldfoil®+Tinned Copper Braid(90%) Shield, PVC Outer Jacket, CMP

Ordering Details

  • Manufacturer Part Number: 82842 877500
  • Color: Natural
  • UPC/EAN: 612825198208
  • Manufacturer Footnote: C

Product Overview

  • Suitable Applications: RS-485, POS; Computer communications; Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Line Level Audio; Panel Wiring; serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, etc.

Construction Details

  • Element: Pair(s); No. of Elements: 2; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
  • Element: Pair(s); Material: FEP - Fluorinated Ethylene Propylene (Foam); Nom. Thickness: 0.019 in (0.48 mm); Nom. Insulation Diameter: 0.062 in (1.6 mm); Color Code: White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 90%
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.273 in (6.93 mm)
  • Overall Cable Diameter (Nominal): 0.273 in (6.93 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 24 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 12 pF/ft (39 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 22 pF/ft (72 pF/m); Nom. Characteristic Impedence: 120 Ohm; Nom. Velocity of Prop.: 76%; Max. Current: 3.2 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 2.4 Ohm/1000ft (7.9 Ohm/km)
  • Element: Pair(s); Frequency [MHz]: 1; Nom. Insertion Loss (Attenuation): 0.6 dB/100ft
  • UL Voltage Rating: 300 V (CMP)

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: 0°C to +75°C
  • Stationary Min.: 2.75 in (69.9 mm); Installation Min.: 2.75 in (69.9 mm)
  • Max. Pull Tension: 56.7 lbs (25.7 kg)
  • Bulk Cable Weight: 38 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor
  • Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMP
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Non-Plenum Number: 9842

History

  • Update and Revision: Revision Number: 0.544 Revision Date: 02-20-2026
  • Footnote: C - CRATE REEL PUT-UP.
