Belden 82723 8771000 Audio, Control & Instrument, #22-2pr, FEP, Indiv. Foil, LS-PVC Jkt, CMP - Natural

$3,432.99
SKU:
82723 8771000
Shipping:
Calculated at Checkout
Color:
Natural
Manufacturer Status:
Active
Product Family:
82723
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 82723 8771000 Audio, Control & Instrument, #22-2pr, FEP, Indiv. Foil, LS-PVC Jkt, CMP

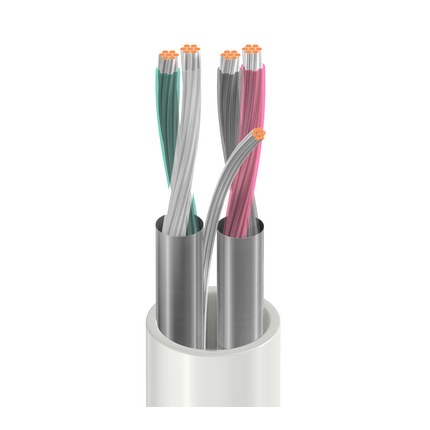

Audio, Control & Instrument Cable, 22 AWG stranded (7x30) tinned copper conductors, FEP insulation, twisted pairs, individually shielded with Beldfoil® (100% coverage), 24 AWG stranded tinned copper drain wire, Flamarrest® jacket, plenum rated.

Ordering Details

  • Manufacturer Part Number: 82723 8771000
  • Color: Natural
  • UPC/EAN: 612825197607
  • Manufacturer Footnote: C

Product Overview

  • Suitable Applications: indoor plenum applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; voice communications; panel wiring

Construction Details

  • Element: Pair(s); No. of Elements: 2; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
  • Element: Pair(s); Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.007 in (0.18 mm); Nom. Insulation Diameter: 0.042 in (1.1 mm); Color Code: Black & Red, Green & White
  • Element: Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC; Notes: each pair
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.017 in (0.43 mm); Nom. Diameter: 0.153 in (3.89 mm)
  • Overall Cable Diameter (Nominal): 0.153 in (3.89 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 14.7 Ohm/1000ft; Nom. Inner Shield DCR: 15 Ohm/1000ft (49 Ohm/km); Nom. Capacitance Cond-to-Cond: 43 pF/ft (140 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 75 pF/ft (250 pF/m); Nom. Characteristic Impedence: 36 Ohm; Nom. Velocity of Prop.: 62%; Max. Current: 2.3 Amps per Conductor at 25ºC
  • UL Voltage Rating: 300 V (CMP)

Mechanical Characteristics

  • UL Temperature: 90°C; Operating: -20°C to +90°C
  • Stationary Min.: 1.5 in (38 mm); Installation Min.: 1.5 in (38 mm)
  • Max. Pull Tension: 46 lbs (21 kg)
  • Bulk Cable Weight: 19 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor - Plenum, Indoor
  • Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMP
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Non-Plenum Number: 8723

History

  • Update and Revision: Revision Number: 0.552 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
