Belden 82509 8771000 RS232, #24-9pr, FEP, O/A Foil, LS-PVC Jkt, CMP - Natural

$19,445.99
SKU:
82509 8771000
Shipping:
Calculated at Checkout
Color:
Natural
Manufacturer Status:
Active
Product Family:
82509
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 82509 8771000 RS232, #24-9pr, FEP, O/A Foil, LS-PVC Jkt, CMP

Computer EIA RS-232 Cable, 9-Pair, 24 AWG stranded (7x32) tinned copper conductors, FEP insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, Flamarrest® jacket, plenum rated

Ordering Details

  • Manufacturer Part Number: 82509 8771000
  • Color: Natural
  • UPC/EAN: 612825197263
  • Manufacturer Footnote: C

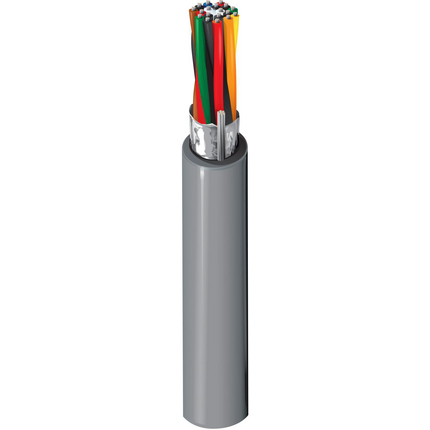

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: indoor plenum applications; RS-232 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Construction Details

  • Element: Pair(s); No. of Elements: 9; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
  • Element: Pair(s); Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.006 in (0.15 mm); Color Code: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.246 in (6.25 mm)
  • Overall Cable Diameter (Nominal): 0.246 in (6.25 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 24.1 Ohm/1000ft (79.1 Ohm/km); Nom. Capacitance Cond-to-Cond: 23 pF/ft (75 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 42 pF/ft (140 pF/m); Nom. Inductance: 0.17 µH/ft (0.56 µH/m); Max. Current: 1.5 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 15 Ohm/1000ft (49 Ohm/km)
  • UL Voltage Rating: 300 V (CMP)

Mechanical Characteristics

  • Operating: 0°C to +75°C
  • Max. Pull Tension: 110 lbs (50 kg)
  • Bulk Cable Weight: 45 lbs/1000ft (67 kg/km)

Standards and Compliance

  • Flammability / Reaction to Fire: NFPA 262 Plenum Flame Test (UL910)
  • NEC / UL Compliance: Article 800, CMP
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.299 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
