Description

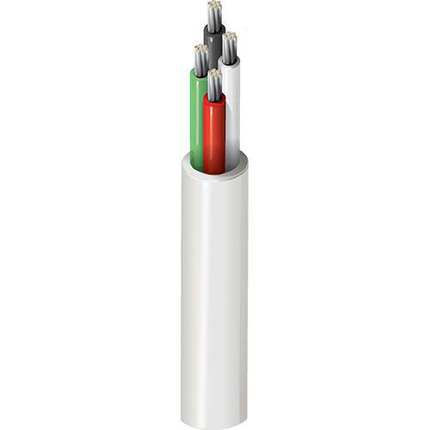

Belden 82489 8771000 Electronic, 4 C #18 Str TC, FEP Ins, PVC Jkt, CMP
Electronic Cable, 4 Conductor 18AWG (19x30) Tinned Copper, FEP Insulation, PVC Outer Jacket, CMP
Ordering Details
- Manufacturer Part Number: 82489 8771000
- Color: Natural
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825197140
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.
Product Overview
- Suitable Applications: indoor plenum applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring
Construction Details
- Element: Conductor(s); No. of Elements: 4; Size: 18 AWG; Stranding: 19x30; Material: TC - Tinned Copper
- Element: Conductor(s); Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.007 in (0.18 mm); Nom. Insulation Diameter: 0.057 in (1.4 mm); Color Code: Black, Red, White, Green
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.177 in (4.50 mm)
- Overall Cable Diameter (Nominal): 0.177 in (4.50 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 6.92 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 21 pF/ft (69 pF/m); Max. Current: 5 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 11.2 Ohm/1000ft (36.7 Ohm/km)
- UL Voltage Rating: 300 V (CMP), 150 V (CL3P)
Mechanical Characteristics
- UL Temperature: 75°C; Operating: 0°C to +75°C
- Stationary Min.: 1.77 in (45.0 mm); Installation Min.: 1.77 in (45.0 mm)
- Max. Pull Tension: 98.8 lbs (44.8 kg)
- Bulk Cable Weight: 29 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor - Plenum, Indoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum)
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 725, Article 800
- CEC / C(UL) Compliance: CMP
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Non-Plenum Number: 8489
History
- Update and Revision: Revision Number: 0.519 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
