Belden 8233A 0101000 Triax, RG11, 14 AWG Solid BC, Double BC Braids, PVC Jkt, CMR - Black, 1,000 ft Reel

$5,100.99
SKU:
8233A 0101000
Shipping:
Calculated at Checkout
Color:
Black
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
8233A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 8233A 0101000 Triax, RG11, 14 AWG Solid BC, Double BC Braids, PVC Jkt, CMR

Triax, RG11, 14 AWG Solid Bare Copper Conductor, PE Insulation, 95% Bare Copper Braid Shield, PVC Insulation, 80% Bare Copper Braid Shield, PVC Jacket, CMR

Ordering Details

  • Manufacturer Part Number: 8233A 0101000
  • Color: Black
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825355649
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

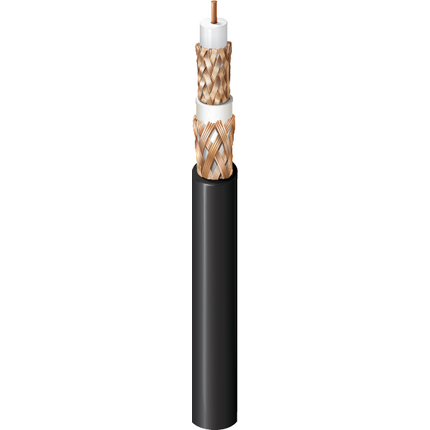

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Analog Video; Interconnect camera to CCU (camera control unit)

Construction Details

  • RG Type: 11
  • Size: 14 AWG; Stranding: Solid; Nom. Diameter: 0.064 in; Material: BC - Bare Copper
  • Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.285 in (7.24 mm); Color Code: White
  • Layer: 1; Shield Type: Braid; Material: Bare Copper (BC); Coverage: 95%
  • Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.365 in (9.27 mm)
  • Layer: 1; Outer Shield Type: Braid; Material: Bare Copper (BC); Coverage: 80%
  • Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.475 in (12.1 mm)
  • Overall Cable Diameter (Nominal): 0.475 in (12.1 mm)

Electrical Characteristics

  • Frequency: 5 - 850 MHz; Min. Return Loss: 21 dB
  • Frequency: 850 - 4500 MHz; Min. Return Loss: 15 dB
  • Frequency: 1 MHz; Nom. Attenuation: 0.14 dB/100ft
  • Frequency: 3.6 MHz; Nom. Attenuation: 0.30 dB/100ft
  • Frequency: 10 MHz; Nom. Attenuation: 0.40 dB/100ft
  • Frequency: 71.5 MHz; Nom. Attenuation: 1.10 dB/100ft
  • Frequency: 135 MHz; Nom. Attenuation: 1.60 dB/100ft
  • Frequency: 270 MHz; Nom. Attenuation: 2.30 dB/100ft
  • Frequency: 360 MHz; Nom. Attenuation: 2.60 dB/100ft
  • Frequency: 540 MHz; Nom. Attenuation: 3.30 dB/100ft
  • Frequency: 720 MHz; Nom. Attenuation: 3.80 dB/100ft
  • Frequency: 750 MHz; Nom. Attenuation: 4.00 dB/100ft
  • Frequency: 1000 MHz; Nom. Attenuation: 4.60 dB/100ft
  • Frequency: 1500 MHz; Nom. Attenuation: 5.90 dB/100ft
  • Frequency: 2250 MHz; Nom. Attenuation: 7.40 dB/100ft
  • Frequency: 3000 MHz; Nom. Attenuation: 9.00 dB/100ft
  • Frequency: 4500 MHz; Nom. Attenuation: 12.50 dB/100ft
  • Nom. Conductor DCR: 2.6 Ohm/1000ft; Nom. Inner Shield DCR: 1.7 Ohm/1000ft (5.6 Ohm/km); Nom. Outer Shield DCR: 1.5 Ohm/1000ft (4.9 Ohm/km); Nom. Capacitance Cond-to-Shield: 16.1 pF/ft (52.8 pF/m); Nom. Characteristic Impedance: 75 Ohm; Nom. Velocity of Prop.: 84%
  • UL Voltage Rating: 300 V (CMR, CMG)

Mechanical Characteristics

  • UL Temperature: 60°C; Operating: -40°C to +80°C
  • Installation Min.: 5.0 in (130 mm)
  • Max. Pull Tension: 170 lbs (77 kg)
  • Bulk Cable Weight: 125 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor/Outdoor, Indoor, Aerial - Black only, When supported by messenger wire
  • Sustainability: CA Prop 65
  • Flammability / Reaction to Fire: UL1666 Vertical Shaft
  • NEC / UL Compliance: CMR
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Plenum Number: 8233P

History

  • Update and Revision: Revision Number: 0.498 Revision Date: 02-20-2026
  • Footnote: C - CRATE REEL PUT-UP.
