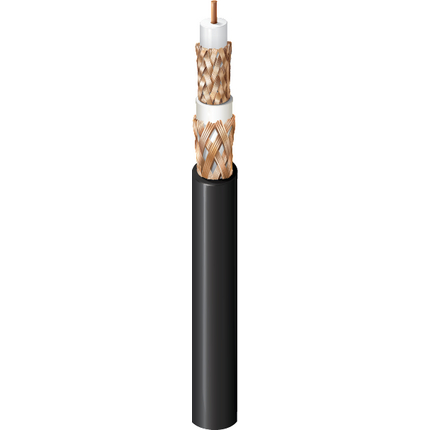

Belden 8232 0102000 Video Triax, RG59, #20 Solid
20 AWG solid .032" bare copper conductor, gas-injected foam HDPE insulation, bare copper braid shields (95% and 80% coverage), polyethylene jacket.
Ordering Details
- Manufacturer Part Number: 8232 0102000
- Color: Black
- Length: 2,000 ft
- Put-Up: Reel
- UPC/EAN: 612825355670
- Manufacturer Footnote: C
Supplied as one 2,000 ft Reel.
Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Construction Details
- RG Type: 59
- Size: 20; Stranding: Solid; Nom. Diameter: 0.032 in; Material: BC - Bare Copper
- Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.145 in (3.68 mm)
- Insulation Table Notes: Gas Injected
- Shield Type: Braid; Material: Bare Copper (BC); Coverage: 95%
- Material: PE - Polyethylene; Nom. Diameter: 0.225 in (5.72 mm)
- Outer Shield Type: Braid; Material: Bare Copper (BC); Coverage: 80%
- Material: PE - Polyethylene; Nom. Diameter: 0.315 in
Electrical Characteristics
- Frequency: 5-850 MHz; Min. Structural Return Loss: 21 dB
- Frequency: 850-3000 MHz; Min. Structural Return Loss: 15 dB
- Frequency: 1 MHz; Nom. Attenuation: 0.3 dB/100ft
- Frequency: 3.6 MHz; Nom. Attenuation: 0.6 dB/100ft
- Frequency: 10 MHz; Nom. Attenuation: 0.9 dB/100ft
- Frequency: 71.5 MHz; Nom. Attenuation: 2.1 dB/100ft
- Frequency: 135 MHz; Nom. Attenuation: 3 dB/100ft
- Frequency: 270 MHz; Nom. Attenuation: 4.2 dB/100ft
- Frequency: 360 MHz; Nom. Attenuation: 4.8 dB/100ft
- Frequency: 540 MHz; Nom. Attenuation: 5.9 dB/100ft
- Frequency: 720 MHz; Nom. Attenuation: 7 dB/100ft
- Frequency: 750 MHz; Nom. Attenuation: 7.1 dB/100ft
- Frequency: 1000 MHz; Nom. Attenuation: 8.3 dB/100ft
- Frequency: 1500 MHz; Nom. Attenuation: 10.5 dB/100ft
- Frequency: 2250 MHz; Nom. Attenuation: 13.4 dB/100ft
- Frequency: 3000 MHz; Nom. Attenuation: 15.9 dB/100ft
- Nom. Conductor DCR: 10 Ohm/1000ft (33 Ohm/km); Nom. Inner Shield DCR: 2.5 Ohm/1000ft (8.2 Ohm/km); Nom. Outer Shield DCR: 2.8 Ohm/1000ft (9.2 Ohm/km); Nom. Capacitance Cond-to-Shield: 16.2 pF/ft (53.1 pF/m); Nom. Characteristic Impedance: 75 Ohm; Nom. Velocity of Prop.: 83%
- Voltage Rating: 300 V RMS
Mechanical Characteristics
- Operating: -55°C To +80°C
- Max. Pull Tension: 125 lbs (56.7 kg)
- Bulk Cable Weight: 55 lbs/1000ft (82 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Aerial - When supported by messenger wire, Burial
- European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Plenum Number: 88232
History
- Update and Revision: Revision Number: 0.335 Revision Date: 11-06-2026
- Footnote: C - CRATE REEL PUT-UP.
