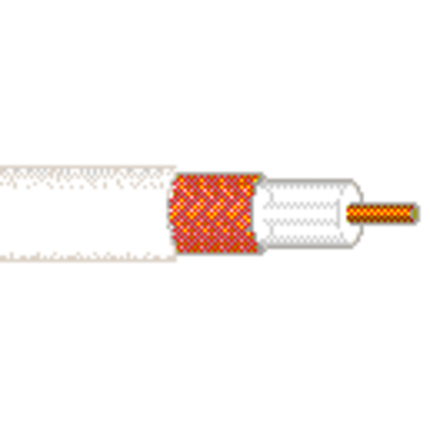

Belden 82241 8771000 Analog Video, RG59, #23 Solid BCCS, 95% BC Braid, Flamarrest® Jacket, CMP - Natural, 1,000 ft Reel

$3,798.99
SKU:
82241 8771000
Shipping:
Calculated at Checkout
Color:
Natural
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
82241
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 82241 8771000 Analog Video, RG59, #23 Solid BCCS, 95% BC Braid, Flamarrest® Jacket, CMP

23 AWG Solid .023" bare copper-covered steel conductor, plenum, FEP insulation, bare copper braid shield (95% coverage), Flamarrest® jacket.

Ordering Details

  • Manufacturer Part Number: 82241 8771000
  • Color: Natural
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825196457
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Construction Details

  • RG Type: 59
  • Series Type: 59
  • Size: 23; Stranding: Solid; Nom. Diameter: 0.023 in; Material: BCCS - Bare Copper Covered Steel
  • Material: FEP - Fluorinated Ethylene Propylene; Nom. Insulation Diameter: 0.134 in (3.40 mm)
  • Outer Shield Type: Braid; Material: Bare Copper (BC); Coverage: 95%
  • Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.19 in

Electrical Characteristics

  • Frequency: 1 MHz; Nom. Attenuation: 0.5 dB/100ft
  • Frequency: 10 MHz; Nom. Attenuation: 1 dB/100ft
  • Frequency: 50 MHz; Nom. Attenuation: 2.3 dB/100ft
  • Frequency: 100 MHz; Nom. Attenuation: 3.3 dB/100ft
  • Frequency: 200 MHz; Nom. Attenuation: 5.2 dB/100ft
  • Frequency: 400 MHz; Nom. Attenuation: 8.4 dB/100ft
  • Frequency: 700 MHz; Nom. Attenuation: 11.6 dB/100ft
  • Frequency: 900 MHz; Nom. Attenuation: 13.8 dB/100ft
  • Frequency: 1000 MHz; Nom. Attenuation: 14.8 dB/100ft
  • Nom. Conductor DCR: 49 Ohm/1000ft (160 Ohm/km); Nom. Outer Shield DCR: 2.6 Ohm/1000ft (8.5 Ohm/km); Nom. Capacitance Cond-to-Shield: 19.5 pF/ft (64.0 pF/m); Nom. Characteristic Impedance: 75 Ohm; Nom. Velocity of Prop.: 70%
  • UL Voltage Rating: 300 V RMS; Voltage Rating: 1700 V RMS

Mechanical Characteristics

  • UL Temperature: 60°C; Operating: -20°C To +75°C
  • Max. Pull Tension: 62 lbs (28 kg)
  • Bulk Cable Weight: 34 lbs/1000ft (51 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor - Plenum, Indoor
  • Flammability / Reaction to Fire: NFPA 262
  • NEC / UL Compliance: CMP
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Non-Plenum Number: 8241

History

  • Update and Revision: Revision Number: 0.359 Revision Date: 11-06-2026
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 82241 Product Information
