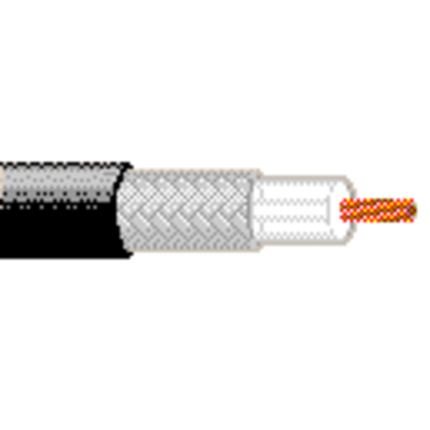

Belden 8218 010500 Analog Video, #27 Str BCCS, 95% TC Braid, PVC Jacket
27 AWG stranded (7x35) .017" bare copper-covered steel conductor, polyethylene insulation, tinned copper braid shield (95% coverage), PVC jacket.
Ordering Details
- Manufacturer Part Number: 8218 010500
- Color: Black
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825358008
Supplied as one 500 ft Reel.
Construction Details
- RG Type: Mini 59
- Size: 27; Stranding: Stranded; Nom. Diameter: 0.017 in; Material: BCCS - Bare Copper Covered Steel
- Material: PE - Polyethylene; Nom. Insulation Diameter: 0.1 in (2.5 mm)
- Outer Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 95%
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.15 in
Electrical Characteristics
- Frequency: 1 MHz; Nom. Attenuation: 1.2 dB/100ft
- Frequency: 10 MHz; Nom. Attenuation: 2.4 dB/100ft
- Frequency: 50 MHz; Nom. Attenuation: 4.2 dB/100ft
- Frequency: 100 MHz; Nom. Attenuation: 5.7 dB/100ft
- Frequency: 200 MHz; Nom. Attenuation: 8.3 dB/100ft
- Frequency: 400 MHz; Nom. Attenuation: 12.1 dB/100ft
- Frequency: 700 MHz; Nom. Attenuation: 16.5 dB/100ft
- Frequency: 900 MHz; Nom. Attenuation: 19 dB/100ft
- Frequency: 1000 MHz; Nom. Attenuation: 20 dB/100ft
- Nom. Conductor DCR: 120 Ohm/1000ft (390 Ohm/km); Nom. Outer Shield DCR: 5.7 Ohm/1000ft (19 Ohm/km); Nom. Capacitance Cond-to-Shield: 20.5 pF/ft (67.3 pF/m); Nom. Characteristic Impedance: 75 Ohm; Nom. Velocity of Prop.: 66%
- UL Voltage Rating: 30 V RMS; Voltage Rating: 1700 V RMS
Mechanical Characteristics
- UL Temperature: 60°C (UL AWM Style 1354); Operating: -40°C To +60°C
- Max. Pull Tension: 32 lbs (15 kg)
- Bulk Cable Weight: 14 lbs/1000ft (21 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum)
- CPR Compliance: CPR Euroclass: Fca
- AWM Compliance: AWM 1354 (30 V 60°C)
- European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.333 Revision Date: 11-06-2026
- Footnote: C - CRATE REEL PUT-UP.
