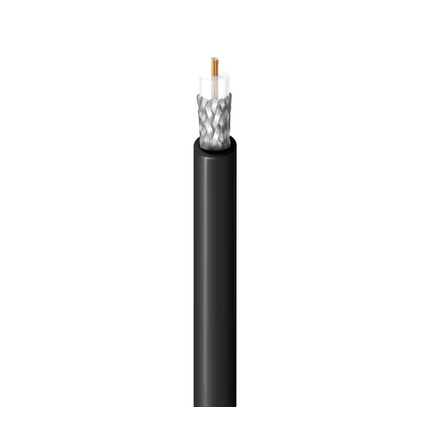

Belden 8216 010500 50 Ohm Wireless Transmission Coax, RG-174, 26 AWG Str BCCS, 90% TC Braid, PVC Jkt
50 Ohm Wireless Transmission Coax, RG-174, 26 AWG (7x34) Bare Copper Covered Steel Conductor , PE Insulation, 90% Tinned Copper Braid Shield, PVC Jacket
Ordering Details
- Manufacturer Part Number: 8216 010500
- Color: Black
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825355496
Supplied as one 500 ft Reel.
Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)
Construction Details
- RG Type: 174
- Size: 26 AWG; Stranding: 7x34; Nom. Diameter: 0.019 in; Material: BCCS - Bare Copper Covered Steel
- Material: PE - Polyethylene; Nom. Insulation Diameter: 0.060 in (1.5 mm); Color Code: White
- Outer Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 90%
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.110 in (2.79 mm)
- Overall Cable Diameter (Nominal): 0.110 in (2.79 mm)
Electrical Characteristics
- Frequency: 1 MHz; Nom. Attenuation: 1.9 dB/100ft
- Frequency: 10 MHz; Nom. Attenuation: 3.3 dB/100ft
- Frequency: 50 MHz; Nom. Attenuation: 5.8 dB/100ft
- Frequency: 100 MHz; Nom. Attenuation: 8.4 dB/100ft
- Frequency: 200 MHz; Nom. Attenuation: 12.5 dB/100ft
- Frequency: 400 MHz; Nom. Attenuation: 19.0 dB/100ft
- Frequency: 700 MHz; Nom. Attenuation: 27.0 dB/100ft
- Frequency: 900 MHz; Nom. Attenuation: 31.0 dB/100ft
- Frequency: 1000 MHz; Nom. Attenuation: 34.0 dB/100ft
- Frequency: 1 MHz; Max. Power Rating: 976 W
- Frequency: 10 MHz; Max. Power Rating: 354 W
- Frequency: 50 MHz; Max. Power Rating: 197 W
- Frequency: 100 MHz; Max. Power Rating: 161 W
- Frequency: 200 MHz; Max. Power Rating: 136 W
- Frequency: 400 MHz; Max. Power Rating: 120 W
- Frequency: 700 MHz; Max. Power Rating: 112 W
- Frequency: 900 MHz; Max. Power Rating: 109 W
- Frequency: 1,000 MHz; Max. Power Rating: 108 W
- Nom. Conductor DCR: 97 Ohm/1000ft; Nom. Outer Shield DCR: 10.7 Ohm/1000ft (35.1 Ohm/km); Nom. Capacitance Cond-to-Shield: 30.8 pF/ft (101 pF/m); Nom. Characteristic Impedance: 50 Ohm; Nom. Velocity of Prop.: 66%
- UL Voltage Rating: 30 V (UL AWM 1354); Voltage Rating: 1100 V
Mechanical Characteristics
- UL Temperature: 60°C (UL AWM 1354); Operating: -30°C to +75°C
- Installation Min.: 1.1 in (28 mm)
- Max. Pull Tension: 20 lbs (9.1 kg)
- Bulk Cable Weight: 8 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Outdoor - Aerial, Indoor, Aerial - Black only, When supported by messenger wire
- Sustainability: CA Prop 65
- CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
- AWM Compliance: AWM 1354
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.540 Revision Date: 02-20-2026
- Footnote: G - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 100'., N - FINAL PUT-UP LENGTH MAY VARY -0% TO +10% FROM LENGTH SHOWN.
