Description
Belden 8214 010500 50 Ohm Wireless Transmission Coax, RG-8, 11 AWG Str BC, 95% BC Braid, PVC Jkt, CM
50 Ohm Wireless Transmission Coax, RG-8, 11 AWG (7x19) Bare Copper Conductor , PE Insulation, 95% Bare Copper Braid Shield, PVC Jacket, CM
Ordering Details
- Manufacturer Part Number: 8214 010500
- Color: Black
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825358015
- Manufacturer Footnote: C
Supplied as one 500 ft Reel.

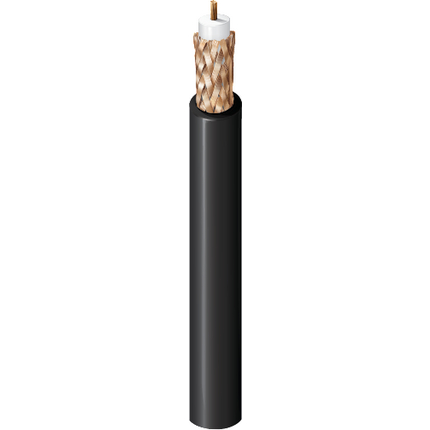

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)
Construction Details
- RG Type: 8
- Size: 11 AWG; Stranding: 7x19; Nom. Diameter: 0.108 in; Material: BC - Bare Copper
- Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.285 in (7.24 mm); Color Code: White
- Outer Shield Type: Braid; Material: Bare Copper (BC); Coverage: 95%
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.403 in (10.2 mm)
- Overall Cable Diameter (Nominal): 0.403 in (10.2 mm)
Electrical Characteristics
- Frequency: 1 MHz; Nom. Attenuation: 0.14 dB/100ft
- Frequency: 10 MHz; Nom. Attenuation: 0.5 dB/100ft
- Frequency: 50 MHz; Nom. Attenuation: 1.2 dB/100ft
- Frequency: 100 MHz; Nom. Attenuation: 1.7 dB/100ft
- Frequency: 200 MHz; Nom. Attenuation: 2.6 dB/100ft
- Frequency: 400 MHz; Nom. Attenuation: 3.9 dB/100ft
- Frequency: 700 MHz; Nom. Attenuation: 5.6 dB/100ft
- Frequency: 900 MHz; Nom. Attenuation: 6.5 dB/100ft
- Frequency: 1000 MHz; Nom. Attenuation: 7.0 dB/100ft
- Frequency: 4000 MHz; Nom. Attenuation: 21.5 dB/100ft
- Nom. Conductor DCR: 1.2 Ohm/1000ft; Nom. Outer Shield DCR: 1.1 Ohm/1000ft (3.6 Ohm/km); Nom. Capacitance Cond-to-Shield: 26 pF/ft (85 pF/m); Nom. Characteristic Impedance: 50 Ohm; Nom. Velocity of Prop.: 78%
- UL Voltage Rating: 300 V (CM), 30 V (UL AWM 1354)
Mechanical Characteristics
- UL Temperature: 60°C (UL AWM 1354); Operating: -40°C to +80°C
- Installation Min.: 4.0 in (100 mm)
- Max. Pull Tension: 230 lbs (100 kg)
- Bulk Cable Weight: 107 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, Aerial - Black only, When supported by messenger wire
- Sustainability: CA Prop 65
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: CM
- AWM Compliance: AWM 1354
- CEC / C(UL) Compliance: CM
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.382 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
