Belden 8175 060500 RS232/422 Low Cap, #24-15pr, FPO, Indiv.& O/A Foils+Braid, PVC Jkt, CM, 100Ω - Chrome, 500 ft Reel

$19,603.99
SKU:
8175 060500
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
8175
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 8175 060500 RS232/422 Low Cap, #24-15pr, FPO, Indiv.& O/A Foils+Braid, PVC Jkt, CM, 100Ω

Computer EIA RS-232/422, Digital Audio Cable, 24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, 15 twisted pairs individually Beldfoil® shielded + overall 100% Beldfoil® + tinned copper braid shield (65% coverage), drain wire, PVC jacket.

Ordering Details

  • Manufacturer Part Number: 8175 060500
  • Color: Chrome
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825195832
  • Manufacturer Footnote: C

Supplied as one 500 ft Reel.

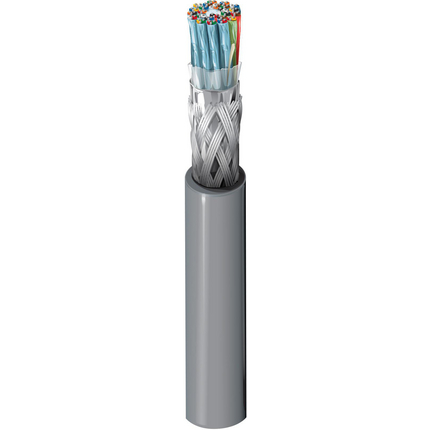

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: RS-232 Extended Distance & RS-422 Applications; Computer Communications; Low Voltage Analog signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Digital Audio; Panel Wiring

Construction Details

  • Element: Pair(s); No. of Elements: 15; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PE - Polyethylene (Foam); Nom. Thickness: 0.019 in (0.48 mm); Color Code: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue
  • Element: Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC; Notes: each pair, Z-Fold® Foil-in
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 65%
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.065 in (1.7 mm); Nom. Diameter: 0.665 in (16.9 mm)
  • Overall Cable Diameter (Nominal): 0.665 in (16.9 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 24 Ohm/1000ft (79 Ohm/km); Nom. Capacitance Cond-to-Cond: 12.5 pF/ft (41.0 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 22 pF/ft (72 pF/m); Nom. Characteristic Impedence: 100 Ohm; Nom. Velocity of Prop.: 78%; Max. Current: 1.1 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 2.5 Ohm/1000ft (8.2 Ohm/km)
  • UL Voltage Rating: 300 V (CM), 300 V (UL AWM 2493)

Mechanical Characteristics

  • UL Temperature: 60°C (UL AWM 2493); Operating: -40°C to +60°C
  • Stationary Min.: 6.7 in (170 mm); Installation Min.: 6.7 in (170 mm)
  • Max. Pull Tension: 322 lbs (146 kg)
  • Bulk Cable Weight: 194 lbs/1000ft (289 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor
  • Flammability / Reaction to Fire: UL1685 UL Loading
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CM
  • AWM Compliance: AWM 2493
  • CEC / C(UL) Compliance: CM
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight.

History

  • Update and Revision: Revision Number: 0.340 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
