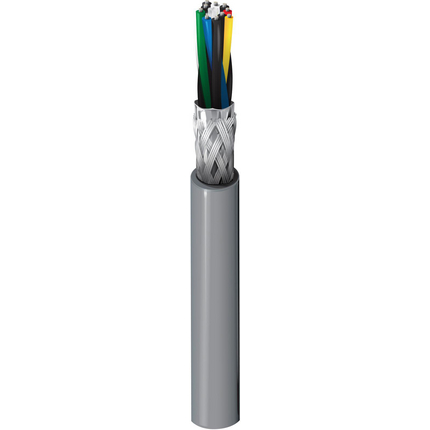

Belden 8135 060100 RS232/485 Low Cap, #28-5pr, FPE, O/A Foil+Braid, PVC Jkt, CL2, 120Ω - Chrome, 100 ft Reel

$942.99
SKU:
8135 060100
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
100 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
8135
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 8135 060100 RS232/485 Low Cap, #28-5pr, FPE, O/A Foil+Braid, PVC Jkt, CL2, 120Ω

Computer EIA RS-232/485 Cable, 5-Pair, 28 AWG stranded (7x36) tinned copper conductors, Datalene® insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), 28 AWG stranded tinned copper drain wire, PVC jacket

Ordering Details

  • Manufacturer Part Number: 8135 060100
  • Color: Chrome
  • Length: 100 ft
  • Put-Up: Reel
  • UPC/EAN: 612825195368

Supplied as one 100 ft Reel.

Product Overview

  • Suitable Applications: RS-232 extended distance applications; RS-485 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Construction Details

  • Element: Pair(s); No. of Elements: 5; Size: 28 AWG; Stranding: 7x36; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PE - Polyethylene (Foam); Nom. Thickness: 0.0145 in (0.368 mm); Color Code: White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe, White/Brown Stripe & Brown/White Stripe, White/Gray Stripe & Gray/White Stripe
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 28 AWG (7x36) TC
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 65%
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.035 in (0.89 mm); Nom. Diameter: 0.288 in (7.32 mm)
  • Overall Cable Diameter (Nominal): 0.288 in (7.32 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 65 Ohm/1000ft (210 Ohm/km); Nom. Capacitance Cond-to-Cond: 11 pF/ft (36 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 20 pF/ft (66 pF/m); Nom. Characteristic Impedence: 120 Ohm; Nom. Velocity of Prop.: 78%; Max. Current: 0.9 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 4.2 Ohm/1000ft (14 Ohm/km)
  • UL Voltage Rating: 30 V (UL AWM 2919)

Mechanical Characteristics

  • UL Temperature: 80°C (UL AWM 2919); Operating: -30°C to +80°C
  • Bulk Cable Weight: 36 lbs/1000ft (54 kg/km)

Standards and Compliance

  • Flammability / Reaction to Fire: UL1685 UL Loading, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: CL2
  • AWM Compliance: AWM 2919
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Datalene®insulation features include low dielectric constant and a dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight.

History

  • Update and Revision: Revision Number: 0.328 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 8135 Product Information
