Description

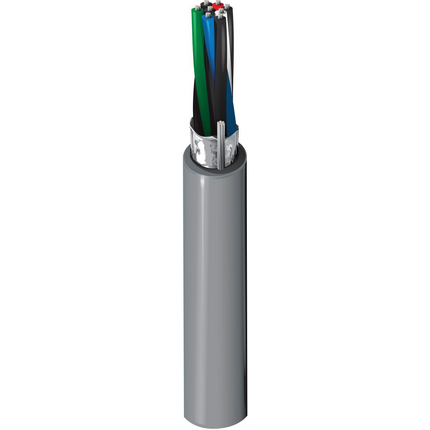

Belden 8134FO 0601000 RS232/485 Low Cap, #28-4pr, FPO, O/A Foil, PVC Jkt, CL2, 120Ω
Computer EIA RS-232/485 Cable, 28 AWG stranded (7x36) tinned copper conductors, Datalene® insulation, twisted pairs, overall Beldfoil® shield (100% coverage), 28 AWG stranded tinned copper drain wire, PVC jacket.
Ordering Details
- Manufacturer Part Number: 8134FO 0601000
- Color: Chrome
- UPC/EAN: 612825195344
- Manufacturer Footnote: C
Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: rs-232 extended distance applications; rs-423 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring
Construction Details
- Element: Pair(s); No. of Elements: 4; Size: 28 AWG; Stranding: 7x36; Material: TC - Tinned Copper
- Element: Pair(s); Material: PE - Polyethylene (Foam); Nom. Thickness: 0.0145 in (0.368 mm); Nom. Insulation Diameter: 0.044 in (1.1 mm); Color Code: White/Blue & Blue/White, White/Orange & Orange/White, White/Green & Green/White, White/Brown & Brown/White
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 28 AWG (7x36) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.035 in (0.89 mm); Nom. Diameter: 0.27 in
- Overall Cable Diameter (Nominal): 0.270 in
Electrical Characteristics
- Nom. Conductor DCR: 73.5 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 11 pF/ft (36 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 20 pF/ft (66 pF/m); Nom. Characteristic Impedence: 120 Ohm; Nom. Velocity of Prop.: 78%; Max. Current: 0.9 Amps per Conductor at 30ºC
- Nom Outer Shield DCR: 20 Ohm/1000ft (66 Ohm/km)
- UL Voltage Rating: 150 V (CL2), 30 V (AWM 2919)
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -30°C to +80°C
- Stationary Min.: 2.7 in (69 mm); Installation Min.: 2.7 in
- Max. Pull Tension: 18.9 lbs (8.57 kg)
- Bulk Cable Weight: 27 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor
- Flammability / Reaction to Fire: UL1685 UL Loading
- NEC / UL Compliance: Article 725, CL2
- AWM Compliance: AWM 2919
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low distortion data handling. Physical properties include good crush resistance and light weight.
History
- Update and Revision: Revision Number: 0.354 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
