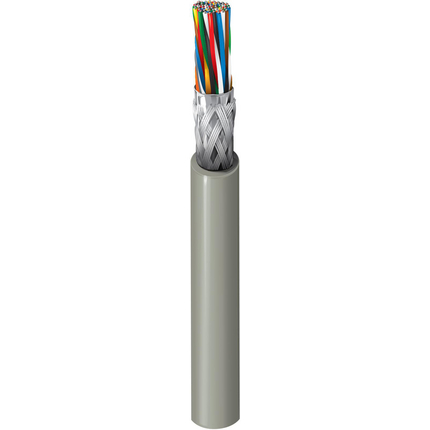

Belden 8125 060100 RS232/422 Low Cap, #24-25pr, FPO, O/A Foil+Braid, PVC Jkt, CMG, 100Ω - Chrome, 100 ft Reel

$4,648.99
SKU:
8125 060100
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
100 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
8125
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 8125 060100 RS232/422 Low Cap, #24-25pr, FPO, O/A Foil+Braid, PVC Jkt, CMG, 100Ω

Computer EIA RS-232/422 Cable, 24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, twisted pairs, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.

Ordering Details

  • Manufacturer Part Number: 8125 060100
  • Color: Chrome
  • Length: 100 ft
  • Put-Up: Reel
  • UPC/EAN: 612825195153
  • Manufacturer Footnote: C

Supplied as one 100 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: rs-232 extended distance applications; rs-422 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Construction Details

  • Element: Pair(s); No. of Elements: 25; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PE - Polyethylene (Foam); Nom. Thickness: 0.013 in (0.33 mm); Nom. Insulation Diameter: 0.049 in (1.2 mm); Color Code: Western Electric Standard
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 65%
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.050 in (1.3 mm); Nom. Diameter: 0.632 in (16.1 mm)
  • Overall Cable Diameter (Nominal): 0.632 in (16.1 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 24 Ohm/1000ft; Max. Conductor DCR: 7.4 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 12.5 pF/ft (41.0 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 22 pF/ft (72 pF/m); Nom. Characteristic Impedence: 100 Ohm; Nom. Velocity of Prop.: 78%; Max. Current: 1 Amp per Conductor at 25ºC
  • Nom Outer Shield DCR: 2 Ohm/1000ft (6.6 Ohm/km)
  • UL Voltage Rating: 300 V (CM), 30 V (UL AWM 2919)

Mechanical Characteristics

  • UL Temperature: 80°C; Operating: -30°C to +80°C
  • Stationary Min.: 6.3 in (160 mm); Installation Min.: 6.3 in (160 mm)
  • Max. Pull Tension: 355 lbs (161 kg)
  • Bulk Cable Weight: 175 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
  • Flammability / Reaction to Fire: UL 1685 FT4 Loading
  • NEC / UL Compliance: Article 800, CM
  • AWM Compliance: AWM 2919
  • CEC / C(UL) Compliance: CM
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Plenum Number: 88125

Product Notes

  • Notes: Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight.

History

  • Update and Revision: Revision Number: 0.455 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 8125 Product Information
