Belden 8076 Magnet Wire, #20 Sol BC, Polyester/Amide-imide Polymer Ins - None, 315 ft Reel

$246.99
SKU:
8076
Shipping:
Calculated at Checkout
Color:
None
Length:
315 ft
Put-Up:
Reel
Manufacturer Status:
Active
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 8076 Magnet Wire, #20 Sol BC, Polyester/Amide-imide Polymer Ins

Magnet Wire, 20AWG (Solid) Bare Copper, Polyester/Amide-imide Polymer Insulation, CLASS 200 MW 35-C

Ordering Details

  • Manufacturer Part Number: 8076
  • Color: None
  • Length: 315 ft
  • Put-Up: Reel
  • UPC/EAN: 612825194583

Supplied as one 315 ft Reel.

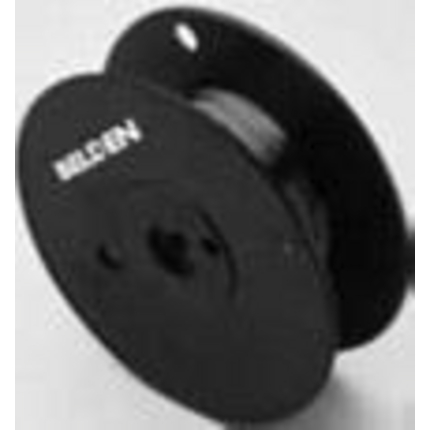

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: class 200 magnet wire

Construction Details

  • Element: Conductor(s); No. of Elements: 1; Size: 20; Stranding: Solid; Material: BC - Bare Copper
  • Material: Polyester; Nom. Thickness: 0.002 in (0.051 mm); Nom. Insulation Diameter: 0.0351 in (0.892 mm)
  • Overall Cable Diameter (Nominal): 0.035 in (0.89 mm)

Electrical Characteristics

  • Nom. Conductor DCR: 10.1 Ohm/1000ft (33.1 Ohm/km); Max. Current: Single conductor in free air @ 30ºC: 1.5 A
  • Breakdown Voltage: 5400 V Minimum (at Room Temperature)

Mechanical Characteristics

  • Operating: 200°C
  • Stationary Min.: 0.14 in (3.6 mm); Installation Min.: 0.14 in (3.6 mm)
  • Max. Pull Tension: 12.4 lbs (5.62 kg)
  • Bulk Cable Weight: 3.2 lbs/1000ft (4.8 kg/km)

Standards and Compliance

  • Sustainability: CA Prop 65
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

  • Update and Revision: Revision Number: 0.621 Revision Date: 07-23-2026

Resources

Belden 8076 Product Information
