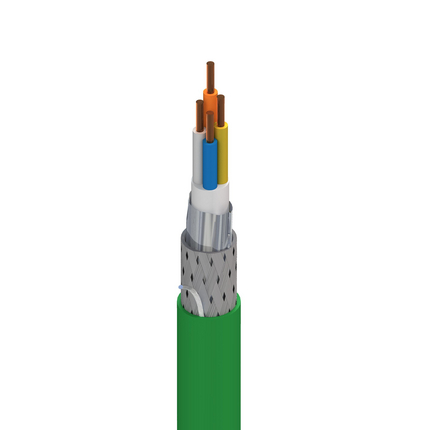

Belden 7960A 1SW2000 DataTuff® Cat 5e, Quad (2 Pr) #22 Sol BC, PO Ins, OS+TC Brd, PVC Jkt, CMG CMX-Outdoor
Industrial Ethernet Cat 5e, Quad (2 Pair) 22AWG (Solid) Bare Copper, PO Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, PVC Outer Jacket, CMG CMX-Outdoor
Ordering Details
- Manufacturer Part Number: 7960A 1SW2000
- Color: Green, RAL 6018
- UPC/EAN: 612825367307
Product Overview
- Suitable Applications: PROFINET, outdoor, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.
Construction Details
- Element: Quad(s); Size: 22 AWG; Stranding: Solid; Material: BC - Bare Copper
- Material: PO - Polyolefin; Color Code: White, Blue, Yellow, Orange
- Material: PE - Polyethylene; Nom. Diameter: 0.164 in (4.17 mm)
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 85%
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.265 in (6.73 mm); Ripcord: No
- Overall Cable Diameter (Nominal): 0.265 in (6.73 mm)
Electrical Characteristics
- Max. Conductor DCR: 57 Ohm/km (17 Ohm/1000ft); Max. Capacitance Unbalance: 150 pF/ft
- Max. Delay: 552 ns/100m; Nom. Velocity of Prop.: 70%
- Frequency [MHz]: 1; Max. Insertion Loss (Attenuation): 2.1 dB/100m; Min. NEXT [dB]: 65.3; Min. PSNEXT [dB]: 62.3; Min. ACR [dB]: 63.2; Min. ACRF (ELFEXT) [dB]: 63.8; Min. PSACRF (PSELFEXT) [dB]: 60.8; Min. RL (Return Loss) [dB]: 23; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 20.2; Max./Min. Fitted Impedance [Ohm]: 105 ±10
- Frequency [MHz]: 4; Max. Insertion Loss (Attenuation): 4.0 dB/100m; Min. NEXT [dB]: 56.3; Min. PSNEXT [dB]: 53.3; Min. ACR [dB]: 56.3; Min. ACRF (ELFEXT) [dB]: 51.7; Min. PSACRF (PSELFEXT) [dB]: 48.7; Min. RL (Return Loss) [dB]: 23; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 14.2; Max./Min. Fitted Impedance [Ohm]: 100 ±10
- Frequency [MHz]: 8; Max. Insertion Loss (Attenuation): 5.6 dB/100m; Min. NEXT [dB]: 51.8; Min. PSNEXT [dB]: 48.8; Min. ACR [dB]: 46.2; Min. ACRF (ELFEXT) [dB]: 45.7; Min. PSACRF (PSELFEXT) [dB]: 42.7; Min. RL (Return Loss) [dB]: 23; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 11.3; Max./Min. Fitted Impedance [Ohm]: 100 ±10
- Frequency [MHz]: 10; Max. Insertion Loss (Attenuation): 6.3 dB/100m; Min. NEXT [dB]: 50.3; Min. PSNEXT [dB]: 47.3; Min. ACR [dB]: 43.9; Min. ACRF (ELFEXT) [dB]: 43.8; Min. PSACRF (PSELFEXT) [dB]: 40.8; Min. RL (Return Loss) [dB]: 25; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 11.3; Max./Min. Fitted Impedance [Ohm]: 100 ±10
- Frequency [MHz]: 16; Max. Insertion Loss (Attenuation): 8.0 dB/100m; Min. NEXT [dB]: 47.3; Min. PSNEXT [dB]: 44.3; Min. ACR [dB]: 35.2; Min. ACRF (ELFEXT) [dB]: 39.7; Min. PSACRF (PSELFEXT) [dB]: 36.7; Min. RL (Return Loss) [dB]: 25; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 11.3; Max./Min. Fitted Impedance [Ohm]: 100 ±10
- Frequency [MHz]: 20; Max. Insertion Loss (Attenuation): 9.0 dB/100m; Min. NEXT [dB]: 45.8; Min. PSNEXT [dB]: 42.8; Min. ACR [dB]: 36.5; Min. ACRF (ELFEXT) [dB]: 37.7; Min. PSACRF (PSELFEXT) [dB]: 34.7; Min. RL (Return Loss) [dB]: 25; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 11.3; Max./Min. Fitted Impedance [Ohm]: 100 ±10
- Frequency [MHz]: 25; Max. Insertion Loss (Attenuation): 10.1 dB/100m; Min. NEXT [dB]: 44.3; Min. PSNEXT [dB]: 41.3; Min. ACR [dB]: 34.2; Min. ACRF (ELFEXT) [dB]: 35.8; Min. PSACRF (PSELFEXT) [dB]: 32.8; Min. RL (Return Loss) [dB]: 25.5; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 11.3; Max./Min. Fitted Impedance [Ohm]: 100 ±10
- Frequency [MHz]: 31.25; Max. Insertion Loss (Attenuation): 11.4 dB/100m; Min. NEXT [dB]: 42.9; Min. PSNEXT [dB]: 39.9; Min. ACR [dB]: 31.3; Min. ACRF (ELFEXT) [dB]: 33.9; Min. PSACRF (PSELFEXT) [dB]: 30.9; Min. RL (Return Loss) [dB]: 23.6; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 13.2; Max./Min. Fitted Impedance [Ohm]: 100 ±10
- Frequency [MHz]: 62.5; Max. Insertion Loss (Attenuation): 16.5 dB/100m; Min. NEXT [dB]: 38.4; Min. PSNEXT [dB]: 35.4; Min. ACR [dB]: 21.6; Min. ACRF (ELFEXT) [dB]: 27.8; Min. PSACRF (PSELFEXT) [dB]: 24.8; Min. RL (Return Loss) [dB]: 21.5; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 16.9; Max./Min. Fitted Impedance [Ohm]: 100 ±10
- Frequency [MHz]: 100; Max. Insertion Loss (Attenuation): 21.3 dB/100m; Min. NEXT [dB]: 35.3; Min. PSNEXT [dB]: 32.3; Min. ACR [dB]: 17.1; Min. ACRF (ELFEXT) [dB]: 23.8; Min. PSACRF (PSELFEXT) [dB]: 20.8; Min. RL (Return Loss) [dB]: 20.1; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 20.0; Max./Min. Fitted Impedance [Ohm]: 100 ±10
- UL Voltage Rating: 300 V (CMG, CMX-Outdoor), 600 V (AWM 21047)
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -40°C To +80°C; Installation: -25°C To +60°C; Storage: -40°C To +80°C
- Stationary Min.: 2.560 in (65.02 mm)
- Max. Pull Tension: 55 lbs (25 kg)
- Bulk Cable Weight: 41 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
- Flammability / Reaction to Fire: UL 1685 (UL Loading), FT4, IEEE 1202 Vertical Tray Flame Test, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMG, CMX-Outdoor, ITC, PLTC
- AWM Compliance: AWM 21047
- CEC / C(UL) Compliance: CMX-Outdoor;CMG
- NEMA Compliance: NEMA WC-63.1
- Data Category: Category 5e
- TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
- ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-5
- European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Operating Temperature subject to length de-rating. Cable passes -40C Cold Bend per UL 1581. Limits below 4 MHz are for information only.
History
- Update and Revision: Revision Number: 0.429 Revision Date: 02-20-2026
