Description

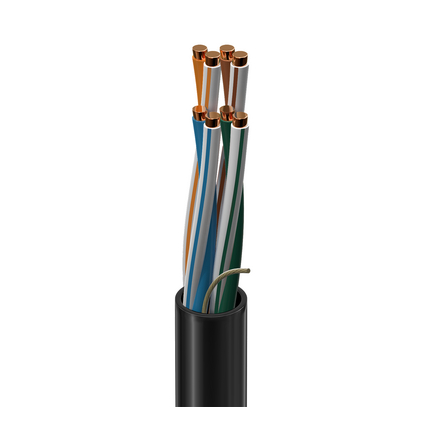

Belden 7922A 0101000 DataTuff® Cat 5e, 4 Bonded-Pr #22 Sol BC, PO Ins, PVC Jkt, PLTC CMR/CMX-Outdoor
Industrial Ethernet Cat 5e, 4 Bonded-Pair 22AWG (Solid) Bare Copper, PO Insulation, PVC Outer Jacket, PLTC CMR/CMX-Outdoor
Ordering Details
- Manufacturer Part Number: 7922A 0101000
- Color: Black
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825191292
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.
Product Overview
- Suitable Applications: power-limited tray, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.
- Patent: This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.
Construction Details
- Element: Pair(s); Size: 22 AWG; Stranding: Solid; Material: BC - Bare Copper; No. of Pairs: 4
- Material: PO - Polyolefin; Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
- Bonded-Pair: Yes
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.301 in (7.65 mm); Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.301 in (7.65 mm)
Electrical Characteristics
- Max. Conductor DCR: 56.5 Ohm/km (17.2 Ohm/1000ft); Max. Capacitance Unbalance: 66 pF/100m
- Max. Delay: 510 ns/100m; Max. Delay Skew: 25 ns/100m; Nom. Velocity of Prop.: 70%
- Frequency [MHz]: 1; Max. Insertion Loss (Attenuation): 2.0 dB/100m; Min. NEXT [dB]: 65.3; Min. PSNEXT [dB]: 65.3; Min. ACR [dB]: 63.3; Min. PSACR [dB]: 63.3; Min. ACRF (ELFEXT) [dB]: 63.8; Min. PSACRF (PSELFEXT) [dB]: 60.8; Min. RL (Return Loss) [dB]: 20; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 12; Max./Min. Fitted Impedance [Ohm]: 105 ± 10
- Frequency [MHz]: 4; Max. Insertion Loss (Attenuation): 4.0 dB/100m; Min. NEXT [dB]: 56.3; Min. PSNEXT [dB]: 56.3; Min. ACR [dB]: 52.3; Min. PSACR [dB]: 52.3; Min. ACRF (ELFEXT) [dB]: 51.7; Min. PSACRF (PSELFEXT) [dB]: 48.7; Min. RL (Return Loss) [dB]: 23; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 12; Max./Min. Fitted Impedance [Ohm]: 100 ± 10
- Frequency [MHz]: 8; Max. Insertion Loss (Attenuation): 5.7 dB/100m; Min. NEXT [dB]: 51.8; Min. PSNEXT [dB]: 51.8; Min. ACR [dB]: 46.1; Min. PSACR [dB]: 46.1; Min. ACRF (ELFEXT) [dB]: 45.7; Min. PSACRF (PSELFEXT) [dB]: 42.7; Min. RL (Return Loss) [dB]: 24.5; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 12; Max./Min. Fitted Impedance [Ohm]: 100 ± 10
- Frequency [MHz]: 10; Max. Insertion Loss (Attenuation): 6.4 dB/100m; Min. NEXT [dB]: 50.3; Min. PSNEXT [dB]: 50.3; Min. ACR [dB]: 43.9; Min. PSACR [dB]: 43.9; Min. ACRF (ELFEXT) [dB]: 43.8; Min. PSACRF (PSELFEXT) [dB]: 40.8; Min. RL (Return Loss) [dB]: 25; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 12; Max./Min. Fitted Impedance [Ohm]: 100 ± 10
- Frequency [MHz]: 16; Max. Insertion Loss (Attenuation): 8.1 dB/100m; Min. NEXT [dB]: 47.3; Min. PSNEXT [dB]: 47.3; Min. ACR [dB]: 39.1; Min. PSACR [dB]: 39.1; Min. ACRF (ELFEXT) [dB]: 39.7; Min. PSACRF (PSELFEXT) [dB]: 36.7; Min. RL (Return Loss) [dB]: 25; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 12; Max./Min. Fitted Impedance [Ohm]: 100 ± 10
- Frequency [MHz]: 20; Max. Insertion Loss (Attenuation): 9.2 dB/100m; Min. NEXT [dB]: 45.8; Min. PSNEXT [dB]: 45.8; Min. ACR [dB]: 35.2; Min. PSACR [dB]: 35.2; Min. ACRF (ELFEXT) [dB]: 37.7; Min. PSACRF (PSELFEXT) [dB]: 34.7; Min. RL (Return Loss) [dB]: 25; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 12; Max./Min. Fitted Impedance [Ohm]: 100 ± 10
- Frequency [MHz]: 25; Max. Insertion Loss (Attenuation): 10.3 dB/100m; Min. NEXT [dB]: 44.3; Min. PSNEXT [dB]: 44.3; Min. ACR [dB]: 34.1; Min. PSACR [dB]: 34.1; Min. ACRF (ELFEXT) [dB]: 35.8; Min. PSACRF (PSELFEXT) [dB]: 32.8; Min. RL (Return Loss) [dB]: 24.3; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 15; Max./Min. Fitted Impedance [Ohm]: 100 ± 10
- Frequency [MHz]: 31.25; Max. Insertion Loss (Attenuation): 11.6 dB/100m; Min. NEXT [dB]: 42.9; Min. PSNEXT [dB]: 42.9; Min. ACR [dB]: 31.3; Min. PSACR [dB]: 31.3; Min. ACRF (ELFEXT) [dB]: 33.9; Min. PSACRF (PSELFEXT) [dB]: 30.9; Min. RL (Return Loss) [dB]: 23.6; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 15; Max./Min. Fitted Impedance [Ohm]: 100 ± 10
- Frequency [MHz]: 62.5; Max. Insertion Loss (Attenuation): 16.8 dB/100m; Min. NEXT [dB]: 38.4; Min. PSNEXT [dB]: 38.4; Min. ACR [dB]: 21.6; Min. PSACR [dB]: 21.6; Min. ACRF (ELFEXT) [dB]: 27.8; Min. PSACRF (PSELFEXT) [dB]: 24.8; Min. RL (Return Loss) [dB]: 21.5; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 15; Max./Min. Fitted Impedance [Ohm]: 100 ± 10
- Frequency [MHz]: 100; Max. Insertion Loss (Attenuation): 21.7 dB/100m; Min. NEXT [dB]: 35.3; Min. PSNEXT [dB]: 35.3; Min. ACR [dB]: 17.1; Min. PSACR [dB]: 17.1; Min. ACRF (ELFEXT) [dB]: 23.8; Min. PSACRF (PSELFEXT) [dB]: 20.8; Min. RL (Return Loss) [dB]: 20.1; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 15
- Frequency [MHz]: 155; Max. Insertion Loss (Attenuation): 27.7 dB/100m; Min. NEXT [dB]: 32.5; Min. PSNEXT [dB]: 32.5; Min. ACR [dB]: 4.7; Min. PSACR [dB]: 4.7; Min. ACRF (ELFEXT) [dB]: 19.9; Min. PSACRF (PSELFEXT) [dB]: 16.9; Min. RL (Return Loss) [dB]: 19; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 18
- Frequency [MHz]: 200; Max. Insertion Loss (Attenuation): 32 dB/100m; Min. NEXT [dB]: 30.8; Min. PSNEXT [dB]: 30.8; Min. ACR [dB]: 3; Min. PSACR [dB]: 3; Min. ACRF (ELFEXT) [dB]: 17.7; Min. PSACRF (PSELFEXT) [dB]: 14.7; Min. RL (Return Loss) [dB]: 19; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 20
- Frequency [MHz]: 250; Max. Insertion Loss (Attenuation): 36.4 dB/100m; Min. NEXT [dB]: 29.3; Min. PSNEXT [dB]: 29.3; Min. ACR [dB]: 0; Min. PSACR [dB]: 0; Min. ACRF (ELFEXT) [dB]: 15.8; Min. PSACRF (PSELFEXT) [dB]: 12.8; Min. RL (Return Loss) [dB]: 18; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 20
- Frequency [MHz]: 300; Max. Insertion Loss (Attenuation): 40.5 dB/100m; Min. NEXT [dB]: 28.2; Min. PSNEXT [dB]: 28.2; Min. ACR [dB]: 0; Min. PSACR [dB]: 0; Min. ACRF (ELFEXT) [dB]: 14.2; Min. PSACRF (PSELFEXT) [dB]: 11.2; Min. RL (Return Loss) [dB]: 18; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 20
- Frequency [MHz]: 310; Max. Insertion Loss (Attenuation): 41.3 dB/100m; Min. NEXT [dB]: 27.9; Min. PSNEXT [dB]: 27.9; Min. ACRF (ELFEXT) [dB]: 13.9; Min. PSACRF (PSELFEXT) [dB]: 10.9; Min. RL (Return Loss) [dB]: 18; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 20
- Frequency [MHz]: 350; Max. Insertion Loss (Attenuation): 44.3 dB/100m; Min. NEXT [dB]: 27.2; Min. PSNEXT [dB]: 27.2; Min. ACRF (ELFEXT) [dB]: 12.9; Min. PSACRF (PSELFEXT) [dB]: 9.9; Min. RL (Return Loss) [dB]: 17; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 22
- UL Voltage Rating: 300 V (PLTC, CMR/CMX-Outdoor), 600 V (AWM)
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -25°C To +75°C; Installation: -10°C To +75°C; Storage: -25°C To +75°C
- Stationary Min.: 1.2 in (30 mm)
- Max. Pull Tension: 40 lbs (18 kg)
- Bulk Cable Weight: 42 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
- Flammability / Reaction to Fire: UL1666 Riser, FT4, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, Article 725, CMR, CMX-Outdoor, PLTC
- AWM Compliance: AWM 21047
- CEC / C(UL) Compliance: CMR
- Data Category: Category 5e
- TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
- Third Party Performance Verification: Category 5e
- ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-5
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Operating temperatures are subject to length de-rating
History
- Update and Revision: Revision Number: 0.657 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
