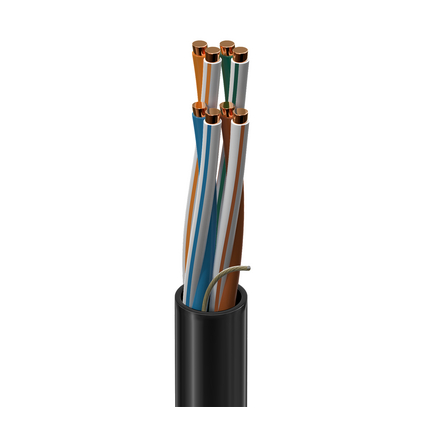

Belden 7918A 0101000 DataTuff® Cat 5e, 4 Pr #24 Sol BC, PO Ins, PVC Jkt, MSHA CMR
Industrial Ethernet Cat 5e, 4 Pair 24AWG (Solid) Bare Copper, PO Insulation, PVC Outer Jacket, MSHA CMR
Ordering Details
- Manufacturer Part Number: 7918A 0101000
- Color: Black
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825191162
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.
Product Overview
- Suitable Applications: harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.
Construction Details
- Element: Pair(s); Size: 24 AWG; Stranding: Solid; Material: BC - Bare Copper; No. of Pairs: 4
- Material: PO - Polyolefin; Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.220 in (5.59 mm); Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.220 in (5.59 mm)
Electrical Characteristics
- Max. Conductor DCR: 93.8 Ohm/km (28.6 Ohm/1000ft); Max. Capacitance Unbalance: 330 pF/ft
- Max. Delay: 510 ns/100m; Max. Delay Skew: 45 ns/100m; Nom. Velocity of Prop.: 68%
- Frequency [MHz]: 1; Max. Insertion Loss (Attenuation) [dB/100m]: 2.0; Min. NEXT [dB]: 65.3; Min. PSNEXT [dB]: 62.3; Min. ACR [dB]: 63; Min. PSACR [dB]: 60; Min. ACRF (ELFEXT) [dB]: 63.8; Min. PSACRF (PSELFEXT) [dB]: 60.8; Min. RL (Return Loss) [dB]: 20; Min. SRL (Structural Return Loss) [dB]: 23; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 15; Max./Min. Fitted Impedance [Ohm]: 100 ± 15
- Frequency [MHz]: 4; Max. Insertion Loss (Attenuation) [dB/100m]: 4.1; Min. NEXT [dB]: 56.3; Min. PSNEXT [dB]: 53.3; Min. ACR [dB]: 51; Min. PSACR [dB]: 49; Min. ACRF (ELFEXT) [dB]: 51.7; Min. PSACRF (PSELFEXT) [dB]: 48.7; Min. RL (Return Loss) [dB]: 23; Min. SRL (Structural Return Loss) [dB]: 23; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 15; Max./Min. Fitted Impedance [Ohm]: 100 ± 15
- Frequency [MHz]: 8; Max. Insertion Loss (Attenuation) [dB/100m]: 5.8; Min. NEXT [dB]: 51.8; Min. PSNEXT [dB]: 48.8; Min. ACR [dB]: 46; Min. PSACR [dB]: 43; Min. ACRF (ELFEXT) [dB]: 45.7; Min. PSACRF (PSELFEXT) [dB]: 42.7; Min. RL (Return Loss) [dB]: 24.5; Min. SRL (Structural Return Loss) [dB]: 24.5; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 15; Max./Min. Fitted Impedance [Ohm]: 100 ± 15
- Frequency [MHz]: 10; Max. Insertion Loss (Attenuation) [dB/100m]: 6.5; Min. NEXT [dB]: 50.3; Min. PSNEXT [dB]: 47.3; Min. ACR [dB]: 43; Min. PSACR [dB]: 41; Min. ACRF (ELFEXT) [dB]: 43.8; Min. PSACRF (PSELFEXT) [dB]: 40.8; Min. RL (Return Loss) [dB]: 25; Min. SRL (Structural Return Loss) [dB]: 25; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 15; Max./Min. Fitted Impedance [Ohm]: 100 ± 15
- Frequency [MHz]: 16; Max. Insertion Loss (Attenuation) [dB/100m]: 8.2; Min. NEXT [dB]: 47.3; Min. PSNEXT [dB]: 44.3; Min. ACR [dB]: 39; Min. PSACR [dB]: 36; Min. ACRF (ELFEXT) [dB]: 39.7; Min. PSACRF (PSELFEXT) [dB]: 36.7; Min. RL (Return Loss) [dB]: 25; Min. SRL (Structural Return Loss) [dB]: 25; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 15; Max./Min. Fitted Impedance [Ohm]: 100 ± 15
- Frequency [MHz]: 20; Max. Insertion Loss (Attenuation) [dB/100m]: 9.3; Min. NEXT [dB]: 45.8; Min. PSNEXT [dB]: 42.8; Min. ACR [dB]: 36.5; Min. PSACR [dB]: 33.5; Min. ACRF (ELFEXT) [dB]: 37.7; Min. PSACRF (PSELFEXT) [dB]: 34.7; Min. RL (Return Loss) [dB]: 25; Min. SRL (Structural Return Loss) [dB]: 25; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 15; Max./Min. Fitted Impedance [Ohm]: 100 ± 15
- Frequency [MHz]: 25; Max. Insertion Loss (Attenuation) [dB/100m]: 10.4; Min. NEXT [dB]: 44.3; Min. PSNEXT [dB]: 41.3; Min. ACR [dB]: 33.9; Min. PSACR [dB]: 30.9; Min. ACRF (ELFEXT) [dB]: 35.8; Min. PSACRF (PSELFEXT) [dB]: 32.8; Min. RL (Return Loss) [dB]: 24.3; Min. SRL (Structural Return Loss) [dB]: 24.3; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 15; Max./Min. Fitted Impedance [Ohm]: 100 ± 15
- Frequency [MHz]: 31.25; Max. Insertion Loss (Attenuation) [dB/100m]: 11.7; Min. NEXT [dB]: 42.9; Min. PSNEXT [dB]: 39.9; Min. ACR [dB]: 31; Min. PSACR [dB]: 28; Min. ACRF (ELFEXT) [dB]: 33.9; Min. PSACRF (PSELFEXT) [dB]: 30.9; Min. RL (Return Loss) [dB]: 23.6; Min. SRL (Structural Return Loss) [dB]: 23.6; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 15; Max./Min. Fitted Impedance [Ohm]: 100 ± 15
- Frequency [MHz]: 62.5; Max. Insertion Loss (Attenuation) [dB/100m]: 17.0; Min. NEXT [dB]: 38.4; Min. PSNEXT [dB]: 35.4; Min. ACR [dB]: 22; Min. PSACR [dB]: 19; Min. ACRF (ELFEXT) [dB]: 27.8; Min. PSACRF (PSELFEXT) [dB]: 24.8; Min. RL (Return Loss) [dB]: 21.5; Min. SRL (Structural Return Loss) [dB]: 21.5; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 15; Max./Min. Fitted Impedance [Ohm]: 100 ± 15
- Frequency [MHz]: 100; Max. Insertion Loss (Attenuation) [dB/100m]: 22.0; Min. NEXT [dB]: 35.3; Min. PSNEXT [dB]: 32.3; Min. ACR [dB]: 14; Min. PSACR [dB]: 11; Min. ACRF (ELFEXT) [dB]: 23.8; Min. PSACRF (PSELFEXT) [dB]: 20.8; Min. RL (Return Loss) [dB]: 20.1; Min. SRL (Structural Return Loss) [dB]: 20.1; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 15
- Frequency [MHz]: 155; Max. Insertion Loss (Attenuation) [dB/100m]: 28.1; Min. NEXT [dB]: 32.5; Min. PSNEXT [dB]: 29.5; Min. ACR [dB]: 4.4; Min. PSACR [dB]: 1.4; Min. ACRF (ELFEXT) [dB]: 19.9; Min. PSACRF (PSELFEXT) [dB]: 16.9; Min. RL (Return Loss) [dB]: 15.8; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 25
- Frequency [MHz]: 200; Max. Insertion Loss (Attenuation) [dB/100m]: 32; Min. NEXT [dB]: 30.8; Min. PSNEXT [dB]: 27.8; Min. ACR [dB]: 4; Min. PSACR [dB]: 1; Min. ACRF (ELFEXT) [dB]: 17.7; Min. PSACRF (PSELFEXT) [dB]: 14.7; Min. RL (Return Loss) [dB]: 15; Max./Min. Input Impedance (unFitted) [Ohm]: 100 ± 25
- UL Voltage Rating: 300 V (CMR), 300 V (CMX-Outdoor)
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -40°C To +75°C; Installation: -20°C To +75°C; Storage: -20°C To +75°C
- Stationary Min.: 0.5 in (13 mm)
- Max. Pull Tension: 35 lbs (16 kg)
- Bulk Cable Weight: 23 lbs/1000ft (34 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
- Flammability / Reaction to Fire: UL1666 Riser, FT4, IEEE 1202 Vertical Tray Flame Test, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMR, CMX-Outdoor, CMG
- CEC / C(UL) Compliance: CMX-Outdoor;CMG
- Data Category: Category 5e
- TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
- Third Party Performance Verification: Category 5e
- ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-5
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Other Standard Compliance(s): P-07-KA060003-MSHA
Product Notes
- Notes: Operating temperatures are subject to length de-rating. Cable passes -40C Cold Bend per UL 1581.
History
- Update and Revision: Revision Number: 0.683 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
