Description
Belden 7900A T5U500 DeviceBus®, 2 Pr #16+18 Str TC, PVC-NYL+PO Ins, PVC Jkt, 600V TC-ER
DeviceBus® for ODVA DeviceNet™, 2 Pair 16+18AWG (19x29+19x30) Tinned Copper, PVC-NYL+PO Insulation, PVC Outer Jacket, 600V TC-ER
Ordering Details
- Manufacturer Part Number: 7900A T5U500
- Color: Gray T5U
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825190912
- Manufacturer Footnote: C
Supplied as one 500 ft Reel.

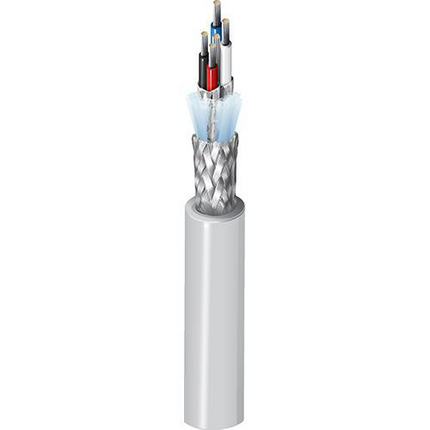

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: harsh environment, ODVA device-level communication, used with CIP (common Industrial Protocol) for control, configuration, and data collection between devices, such as sensors and actuators, and higher level devices such as PLC, and PC in industrial automation, bus topology, etc.
Construction Details
- Element: Pair(s); Size: 16 AWG; Stranding: 19x29; Material: TC - Tinned Copper
- Element: Conductor(s); Size: 18 AWG; Stranding: 19x30; Material: TC - Tinned Copper
- Element: Conductor(s); Material: PVC/Nylon - Polyvinyl Chloride + Nylon; Nom. Insulation Diameter: 0.101 in (2.57 mm); Color Code: Red & Black, Blue & White
- Element: Conductor1; Material: PP - Polypropylene; Nom. Insulation Diameter: 0.098 in (2.5 mm); Notes: Flame Retardant
- Element: Data Pair(s)
- Material: No Shield
- Separator: Polyester Tape; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.075 in (1.9 mm); Nom. Diameter: 0.43 in (11 mm)
Electrical Characteristics
- Nom. Conductor DCR: 4.9 Ohm/1000ft; Nom. Characteristic Impedence: 100 Ohm; Max. Current: 4.8 Amps per Conductor
- Nom. Conductor DCR: 6.9 Ohm/1000ft (23 Ohm/km); Nom. Capacitance Cond-to-Cond: 14.7 pF/ft (48.2 pF/m); Nom. Characteristic Impedence: 120 Ohm; Nom. Delay: 1.6 ns/ft; Nom. Velocity of Prop.: 64%
- UL Voltage Rating: 600 V
Mechanical Characteristics
- UL Temperature: 75°C; Operating: -20°C to +75°C
- Stationary Min.: 4.3 in (110 mm); Installation Min.: 4.3 in (110 mm)
- Max. Pull Tension: 160 lbs (73 kg)
- Bulk Cable Weight: 100 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Outdoor, Sunlight Resistance, Oil Resistance
- Flammability / Reaction to Fire: UL1685 UL Loading
- NEC / UL Compliance: Article 336, TC-ER
- AWM Compliance: AWM I/II A/B
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Other Standard Compliance(s): ODVA Cable IV
Product Notes
- Notes: Drop. Meter marks on jacket to aid users in installation. ODVA DeviceNet is an Open DeviceNet Vendor Association, Inc. trademark.
History
- Update and Revision: Revision Number: 0.499 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
