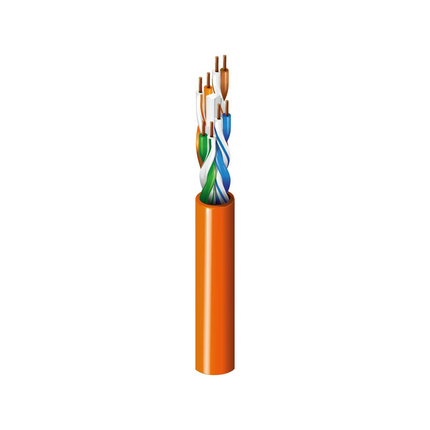

Belden 7883A 0091000 CAT6 Patch, 4pr, UTP, PVC Jkt, CMR
CAT6 (250MHz), 4-Pair, U/UTP-unshielded, Riser-CMR, Premise Patch cable, 24 AWG solid bare copper conductors, polyolefin insulation, central filler, PVC jacket, RG-45 compatible
Ordering Details
- Manufacturer Part Number: 7883A 0091000
- Color: White
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825190653
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.
Product Overview
- Suitable Applications: Premise Patch Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM
Construction Details
- Size: 24; Stranding: Solid; Material: BC - Bare Copper; No. of Pairs: 4
- Material: PO - Polyolefin; Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
- Separator: Central Filler; Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.205 in; Ripcord: No
Electrical Characteristics
- Max. Conductor DCR: 93.8 Ohm/km (28.6 Ohm/1000ft); Max. Capacitance Unbalance: 160 pF/100m
- Frequency: 100 MHz; Max. Delay: 537.6 ns/100m; Max. Delay Skew: 45 ns/100m; Nom. Velocity of Prop.: 70%
- Frequency [MHz]: 1; Max. Insertion Loss (Attenuation) [dB/100m]: 2.4; Min. NEXT [dB]: 74.3; Min. PSNEXT [dB]: 72.3; Min. ACRF (ELFEXT) [dB]: 67.8; Min. PSACRF (PSELFEXT) [dB]: 64.8; Min. RL (Return Loss) [dB]: 20.0; Max./Min. Input Impedance (unFitted): 100 ± 15 Ohm; Max./Min. Fitted Impedance: 100 ± 15 Ohm; Min. TCL [dB]: 40.0; Min. ELTCTL [dB]: 35.0
- Frequency [MHz]: 4; Max. Insertion Loss (Attenuation) [dB/100m]: 4.5; Min. NEXT [dB]: 65.3; Min. PSNEXT [dB]: 63.3; Min. ACRF (ELFEXT) [dB]: 55.8; Min. PSACRF (PSELFEXT) [dB]: 52.7; Min. RL (Return Loss) [dB]: 23.0; Max./Min. Input Impedance (unFitted): 100 ± 15 Ohm; Max./Min. Fitted Impedance: 100 ± 15 Ohm; Min. TCL [dB]: 40.0; Min. ELTCTL [dB]: 23.0
- Frequency [MHz]: 8; Max. Insertion Loss (Attenuation) [dB/100m]: 6.4; Min. NEXT [dB]: 60.8; Min. PSNEXT [dB]: 58.8; Min. ACRF (ELFEXT) [dB]: 49.7; Min. PSACRF (PSELFEXT) [dB]: 46.7; Min. RL (Return Loss) [dB]: 24.5; Max./Min. Input Impedance (unFitted): 100 ± 15 Ohm; Max./Min. Fitted Impedance: 100 ± 15 Ohm; Min. TCL [dB]: 40.0; Min. ELTCTL [dB]: 16.9
- Frequency [MHz]: 10; Max. Insertion Loss (Attenuation) [dB/100m]: 7.1; Min. NEXT [dB]: 59.3; Min. PSNEXT [dB]: 57.3; Min. ACRF (ELFEXT) [dB]: 47.8; Min. PSACRF (PSELFEXT) [dB]: 44.8; Min. RL (Return Loss) [dB]: 25.0; Max./Min. Input Impedance (unFitted): 100 ± 15 Ohm; Max./Min. Fitted Impedance: 100 ± 15 Ohm; Min. TCL [dB]: 40.0; Min. ELTCTL [dB]: 15.0
- Frequency [MHz]: 16; Max. Insertion Loss (Attenuation) [dB/100m]: 9.1; Min. NEXT [dB]: 56.2; Min. PSNEXT [dB]: 54.3; Min. ACRF (ELFEXT) [dB]: 43.7; Min. PSACRF (PSELFEXT) [dB]: 40.7; Min. RL (Return Loss) [dB]: 25.0; Max./Min. Input Impedance (unFitted): 100 ± 15 Ohm; Max./Min. Fitted Impedance: 100 ± 15 Ohm; Min. TCL [dB]: 38.0; Min. ELTCTL [dB]: 10.9
- Frequency [MHz]: 20; Max. Insertion Loss (Attenuation) [dB/100m]: 10.2; Min. NEXT [dB]: 54.8; Min. PSNEXT [dB]: 52.8; Min. ACRF (ELFEXT) [dB]: 41.8; Min. PSACRF (PSELFEXT) [dB]: 38.8; Min. RL (Return Loss) [dB]: 25.0; Max./Min. Input Impedance (unFitted): 100 ± 15 Ohm; Max./Min. Fitted Impedance: 100 ± 15 Ohm; Min. TCL [dB]: 37.0; Min. ELTCTL [dB]: 9.0
- Frequency [MHz]: 25; Max. Insertion Loss (Attenuation) [dB/100m]: 11.4; Min. NEXT [dB]: 53.3; Min. PSNEXT [dB]: 51.3; Min. ACRF (ELFEXT) [dB]: 39.8; Min. PSACRF (PSELFEXT) [dB]: 36.8; Min. RL (Return Loss) [dB]: 24.3; Max./Min. Input Impedance (unFitted): 100 ± 15 Ohm; Max./Min. Fitted Impedance: 100 ± 15 Ohm; Min. TCL [dB]: 36.0; Min. ELTCTL [dB]: 7.0
- Frequency [MHz]: 31.25; Max. Insertion Loss (Attenuation) [dB/100m]: 12.8; Min. NEXT [dB]: 51.9; Min. PSNEXT [dB]: 49.9; Min. ACRF (ELFEXT) [dB]: 37.9; Min. PSACRF (PSELFEXT) [dB]: 34.9; Min. RL (Return Loss) [dB]: 23.6; Max./Min. Input Impedance (unFitted): 100 ± 15 Ohm; Max./Min. Fitted Impedance: 100 ± 15 Ohm; Min. TCL [dB]: 35.1; Min. ELTCTL [dB]: 5.1
- Frequency [MHz]: 62.5; Max. Insertion Loss (Attenuation) [dB/100m]: 18.5; Min. NEXT [dB]: 47.4; Min. PSNEXT [dB]: 45.4; Min. ACRF (ELFEXT) [dB]: 31.9; Min. PSACRF (PSELFEXT) [dB]: 28.9; Min. RL (Return Loss) [dB]: 21.5; Max./Min. Input Impedance (unFitted): 100 ± 15 Ohm; Max./Min. Fitted Impedance: 100 ± 15 Ohm; Min. TCL [dB]: 32.0
- Frequency [MHz]: 100; Max. Insertion Loss (Attenuation) [dB/100m]: 23.8; Min. NEXT [dB]: 44.3; Min. PSNEXT [dB]: 42.3; Min. ACRF (ELFEXT) [dB]: 27.8; Min. PSACRF (PSELFEXT) [dB]: 24.8; Min. RL (Return Loss) [dB]: 20.1; Max./Min. Input Impedance (unFitted): 100 ± 15 Ohm; Max./Min. Fitted Impedance: 100 ± 15 Ohm; Min. TCL [dB]: 30.0
- Frequency [MHz]: 155; Max. Insertion Loss (Attenuation) [dB/100m]: 30.2; Min. NEXT [dB]: 41.5; Min. PSNEXT [dB]: 39.5; Min. ACRF (ELFEXT) [dB]: 23.9; Min. PSACRF (PSELFEXT) [dB]: 20.9; Min. RL (Return Loss) [dB]: 18.8; Max./Min. Input Impedance (unFitted): 100 ± 22 Ohm; Max./Min. Fitted Impedance: 100 ± 15 Ohm; Min. TCL [dB]: 28.1
- Frequency [MHz]: 200; Max. Insertion Loss (Attenuation) [dB/100m]: 34.8; Min. NEXT [dB]: 39.8; Min. PSNEXT [dB]: 37.8; Min. ACRF (ELFEXT) [dB]: 21.8; Min. PSACRF (PSELFEXT) [dB]: 18.8; Min. RL (Return Loss) [dB]: 18.0; Max./Min. Input Impedance (unFitted): 100 ± 22 Ohm; Max./Min. Fitted Impedance: 100 ± 15 Ohm; Min. TCL [dB]: 27.0
- Frequency [MHz]: 250; Max. Insertion Loss (Attenuation) [dB/100m]: 39.4; Min. NEXT [dB]: 38.3; Min. PSNEXT [dB]: 36.3; Min. ACRF (ELFEXT) [dB]: 19.8; Min. PSACRF (PSELFEXT) [dB]: 16.8; Min. RL (Return Loss) [dB]: 17.3; Max./Min. Input Impedance (unFitted): 100 ± 32 Ohm; Max./Min. Fitted Impedance: 100 ± 15 Ohm; Min. TCL [dB]: 26.0
- UL Voltage Rating: 300 V RMS
Mechanical Characteristics
- UL Temperature: 75°C; Operating: -20°C To +75°C; Installation: 0°C To +50°C; Storage: -20°C To +75°C
- Stationary Min.: 1.0 in (25 mm); Installation Min.: 2.25 in (57.2 mm)
- Max. Pull Tension: 25 lbs (11 kg)
- Bulk Cable Weight: 20 lbs/1000ft (30 kg/km)
Standards and Compliance
- Environmental Suitability: Riser, Indoor
- Sustainability: Product Lens™, Environmental Product Declaration (EPD) Available
- Flammability / Reaction to Fire: UL 1666 Riser, FT4, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: CMR
- CEC / C(UL) Compliance: CMR
- IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
- Data Category: Category 6
- TIA/EIA Compliance: ANSI/TIA-568-C.2 Category 6 Patch
- Third Party Performance Verification: Category 6 Patch
- ISO/IEC Compliance: 11801 ed 2.2 (2011) Class E Patch
- CENELEC Compliance: Segregation class according EN50174-2 = a
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2017-07-10
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage Markings.
History
- Update and Revision: Revision Number: 0.518 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
