Description
Belden 77812WS 010100 MachFlex™, 12+G C #18 Str BC, PVC Ins, OA TC Brd, PVC Jkt, PVC Jkt, AWM 2587
MachFlex™ for High Flex, 12+G Conductor 18AWG (105(7x15)x38) Bare Copper, PVC Insulation, Overall Tinned Copper Braid(85%) Shield, PVC Inner Jacket, PVC Outer Jacket, AWM 2587
Ordering Details
- Manufacturer Part Number: 77812WS 010100
- Color: Black
- Put-Up: Reel
- UPC/EAN: 612825412434

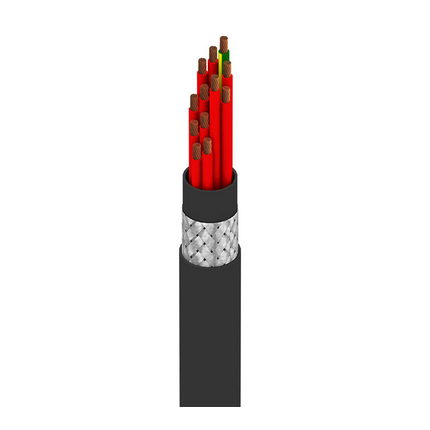

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Construction Details
- Element: Conductor(s); No. of Elements: 11; Size: 18; Stranding: 105x38; Material: BC - Bare Copper
- Element: Ground; Size: 18; Stranding: 105x30; Material: BC - Bare Copper
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.022 in (0.56 mm); Nom. Insulation Diameter: 0.096 in (2.4 mm); Color Code: Red and Numbered
- Element: Ground; Material: PVC - Polyvinyl Chloride
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 85%
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.030 in (0.76 mm); Nom. Diameter: 0.480 in (12.2 mm)
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.060 in (1.5 mm); Nom. Diameter: 0.634 in
Electrical Characteristics
- Nom. Conductor DCR: 6.4 Ohm/1000ft (21 Ohm/km); Nom. Capacitance Cond-to-Cond: 45 pF/ft (150 pF/m); Nom. Inductance: .19 µH/ft (0.62 µH/m)
- Nom Outer Shield DCR: 1.6 Ohm/1000ft (5.2 Ohm/km)
- UL Voltage Rating: 600 V
Mechanical Characteristics
- UL Temperature: 90°C; Operating: -40°C To 90°C (Static), -5°C To 90°C (Flexing)
- Flexing Min.: 5.1 in (130 mm)
- Max. Pull Tension: 174 lbs (78.9 kg)
- Bulk Cable Weight: 497 lbs/1000ft (740 kg/km)
Standards and Compliance
- Environmental Suitability: Oil Resistance, Oil Resistance
- AWM Compliance: AWM 2587, AWM 10012, AWM I/II A/B
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.143 Revision Date: 11-06-2026
