Belden 77604WS 010500 MachFlex™, 4+G C #16 Str BC, PVC Ins, OA TC Brd, PVC Jkt, PVC Jkt, AWM 2587 - Black, Reel

$4,436.99
SKU:
77604WS 010500
Shipping:
Calculated at Checkout
Color:
Black
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
77604WS
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 77604WS 010500 MachFlex™, 4+G C #16 Str BC, PVC Ins, OA TC Brd, PVC Jkt, PVC Jkt, AWM 2587

MachFlex™ for High Flex, 4+G Conductor 16AWG (168(7x24)x38) Bare Copper, PVC Insulation, Overall Tinned Copper Braid(85%) Shield, PVC Inner Jacket, PVC Outer Jacket, AWM 2587

Ordering Details

  • Manufacturer Part Number: 77604WS 010500
  • Color: Black
  • Put-Up: Reel
  • UPC/EAN: 612825412205

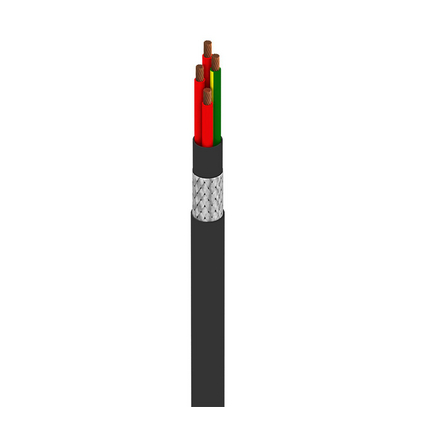

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Construction Details

  • Element: Conductor(s); No. of Elements: 3; Size: 16; Stranding: 168x38; Material: BC - Bare Copper
  • Element: Ground; Size: 16; Stranding: 168x38; Material: BC - Bare Copper
  • Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.022 in (0.56 mm); Nom. Insulation Diameter: 0.111 in (2.82 mm); Color Code: Red and Numbered
  • Element: Ground; Material: PVC - Polyvinyl Chloride
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 85%
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.030 in (0.76 mm); Nom. Diameter: 0.352 in (8.94 mm)
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.040 in (1.0 mm); Nom. Diameter: 0.460 in

Electrical Characteristics

  • Nom. Conductor DCR: 4.0 Ohm/1000ft (13 Ohm/km); Nom. Capacitance Cond-to-Cond: 51 pF/ft (170 pF/m); Nom. Inductance: .18 µH/ft (0.59 µH/m)
  • Nom Outer Shield DCR: 2.9 Ohm/1000ft (9.5 Ohm/km)
  • UL Voltage Rating: 600 V

Mechanical Characteristics

  • UL Temperature: 90°C; Operating: -40°C To 90°C (Static), -5°C To 90°C (Flexing)
  • Flexing Min.: 3.7 in (94 mm)
  • Max. Pull Tension: 93 lbs (42 kg)
  • Bulk Cable Weight: 268 lbs/1000ft (399 kg/km)

Standards and Compliance

  • Environmental Suitability: Oil Resistance, Oil Resistance
  • AWM Compliance: AWM 2587, AWM 10012, AWM I/II A/B
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.141 Revision Date: 11-06-2026
