Belden 7713A B591000 VideoFLEX® Snake, RG6, #18-10 Coax, CMR

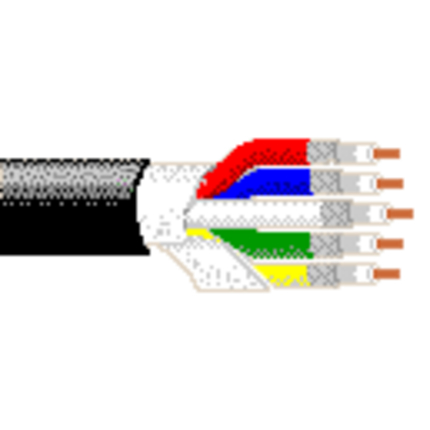

VideoFLEX® Digital Coax Snake Cable, Riser-CMR, 10-RG6 18 AWG, solid bare copper conductors, foam HDPE core, Duofoil® +95% tinned copper braid, PVC jacket
Ordering Details
- Manufacturer Part Number: 7713A B591000
- Color: Black, Matte
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825357223
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.
Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080p, SDI/HDTV Digital Video, High Definition (HD), Standard Definition (SDI)
Construction Details
- RG Type: 6
- Series Type: 6
- Size: 18; Stranding: Solid; Nom. Diameter: 0.04 in; Material: BC - Bare Copper
- Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.18 in (4.6 mm); Color Code: White, Black, Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray
- Insulation Table Notes: Gas Injected
- Layer: 1; Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Material Trade Name: Duofoil®; Coverage: 100%
- Layer: 2; Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 95%
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.275 in (6.99 mm)
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 1.386 in
Electrical Characteristics
- Frequency: 5-1600 MHz; Min. Structural Return Loss: 23 dB
- Frequency: 1600-4500 MHz; Min. Structural Return Loss: 21 dB
- Frequency: 4500-6000 MHz; Min. Structural Return Loss: 15 dB
- Frequency: 1 MHz; Nom. Attenuation: 0.24 dB/100ft
- Frequency: 3.58 MHz; Nom. Attenuation: 0.44 dB/100ft
- Frequency: 5 MHz; Nom. Attenuation: 0.52 dB/100ft
- Frequency: 7 MHz; Nom. Attenuation: 0.61 dB/100ft
- Frequency: 10 MHz; Nom. Attenuation: 0.71 dB/100ft
- Frequency: 67.5 MHz; Nom. Attenuation: 1.65 dB/100ft
- Frequency: 71.5 MHz; Nom. Attenuation: 1.69 dB/100ft
- Frequency: 88.5 MHz; Nom. Attenuation: 1.86 dB/100ft
- Frequency: 100 MHz; Nom. Attenuation: 1.95 dB/100ft
- Frequency: 135 MHz; Nom. Attenuation: 2.24 dB/100ft
- Frequency: 143 MHz; Nom. Attenuation: 2.3 dB/100ft
- Frequency: 180 MHz; Nom. Attenuation: 2.57 dB/100ft
- Frequency: 270 MHz; Nom. Attenuation: 3.17 dB/100ft
- Frequency: 360 MHz; Nom. Attenuation: 3.69 dB/100ft
- Frequency: 540 MHz; Nom. Attenuation: 4.6 dB/100ft
- Frequency: 720 MHz; Nom. Attenuation: 5.38 dB/100ft
- Frequency: 750 MHz; Nom. Attenuation: 5.5 dB/100ft
- Frequency: 1000 MHz; Nom. Attenuation: 6.42 dB/100ft
- Frequency: 1500 MHz; Nom. Attenuation: 7.99 dB/100ft
- Frequency: 2000 MHz; Nom. Attenuation: 9.37 dB/100ft
- Frequency: 2250 MHz; Nom. Attenuation: 10.01 dB/100ft
- Frequency: 3000 MHz; Nom. Attenuation: 11.78 dB/100ft
- Frequency: 4500 MHz; Nom. Attenuation: 14.7 dB/100ft
- Frequency: 6000 MHz; Nom. Attenuation: 17.7 dB/100ft
- Nom. Conductor DCR: 6.4 Ohm/1000ft (21 Ohm/km); Nom. Inner Shield DCR: 3 Ohm/1000ft (9.8 Ohm/km); Nom. Capacitance Cond-to-Shield: 16.3 pF/ft (53.5 pF/m); Nom. Characteristic Impedance: 75 Ohm; Nom. Velocity of Prop.: 82%
- UL Voltage Rating: 300 V RMS
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -40°C To +75°C
- Max. Pull Tension: 690 lbs (310 kg)
- Bulk Cable Weight: 786 lbs/1000ft (1170 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, Aerial - Black only, When supported by messenger wire
- Flammability / Reaction to Fire: UL1666 Vertical Shaft
- NEC / UL Compliance: CMR
- AWM Compliance: AWM 1354 (each coax), AWM 2688 (overall)
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.362 Revision Date: 11-06-2026
- Footnote: C - CRATE REEL PUT-UP.
