Belden 77005W 010500 MachFlex™, 5+G C #20 Str BC, PVC Ins, PVC Jkt, AWM 2587
MachFlex™ for High Flex, 5+G Conductor 20AWG (63(7x9)x38) Bare Copper, PVC Insulation, PVC Outer Jacket, AWM 2587
Ordering Details
- Manufacturer Part Number: 77005W 010500
- Color: Black
- Put-Up: Reel
- UPC/EAN: 612825412069

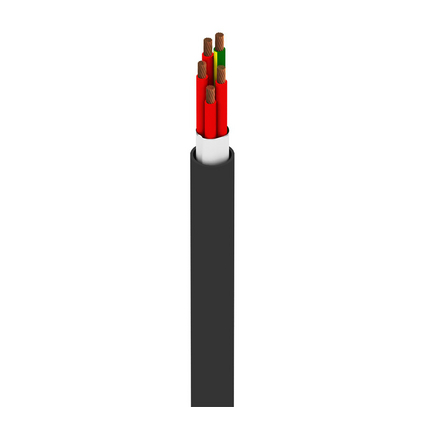

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Robotics, Robot, Continuous Flex
Construction Details
- Element: Conductor(s); No. of Elements: 5; Size: 20; Stranding: 63x38; Material: BC - Bare Copper
- Element: Ground; Size: 20; Stranding: 63x38; Material: BC - Bare Copper
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.022 in (0.56 mm); Nom. Insulation Diameter: 0.084 in (2.1 mm); Color Code: Red and Numbered
- Element: Ground; Material: PVC - Polyvinyl Chloride
- Shield Type: No Shield; Material: No Shield
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.035 in (0.89 mm); Nom. Diameter: 0.323 in
Electrical Characteristics
- Nom. Conductor DCR: 10.9 Ohm/1000ft (35.8 Ohm/km); Nom. Capacitance Cond-to-Cond: 28 pF/ft (92 pF/m); Nom. Inductance: .20 µH/ft (0.66 µH/m)
- UL Voltage Rating: 600 V
Mechanical Characteristics
- UL Temperature: 90°C; Operating: -40°C To 90°C (Static), -5°C To 90°C (Flexing)
- Flexing Min.: 2.6 in (66 mm)
- Max. Pull Tension: 40 lbs (18 kg)
- Bulk Cable Weight: 160 lbs/1000ft (240 kg/km)
Standards and Compliance
- Environmental Suitability: Oil Resistance
- AWM Compliance: AWM 2587, AWM 10012, AWM I/II A/B
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.138 Revision Date: 11-06-2026
