Belden 77004W 010100 MachFlex™, 4+G C #20 Str BC, PVC Ins, PVC Jkt, AWM 2587
MachFlex™ for High Flex, 4+G Conductor 20AWG (63(7x9)x38) Bare Copper, PVC Insulation, PVC Outer Jacket, AWM 2587
Ordering Details
- Manufacturer Part Number: 77004W 010100
- Color: Black
- Put-Up: Reel
- UPC/EAN: 612825412014

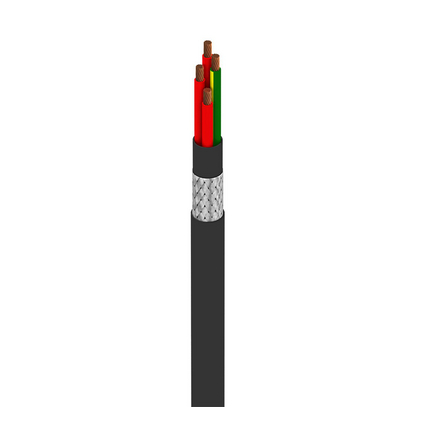

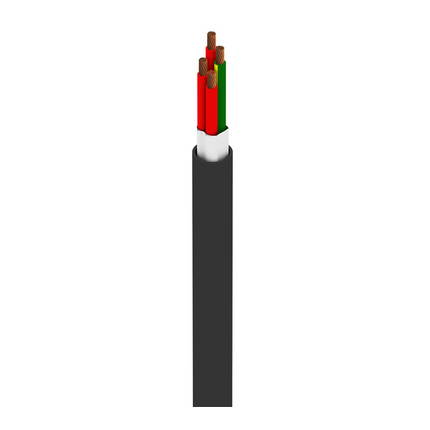

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Robotics, Robot, Continuous Flex
Construction Details
- Element: Conductor(s); No. of Elements: 3; Size: 20; Stranding: 63x38; Material: BC - Bare Copper
- Element: Ground; No. of Elements: 1; Size: 20; Stranding: 63x38; Material: BC - Bare Copper
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.022 in (0.56 mm); Nom. Insulation Diameter: 0.084 in (2.1 mm); Color Code: Red and Numbered
- Element: Ground; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.022 in (0.56 mm); Nom. Insulation Diameter: 0.084 in (2.1 mm); Color Code: Yellow/Green/Green
- Shield Type: No Shield; Material: No Shield
- Separator: Tissue Tape; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.035 in (0.89 mm); Nom. Diameter: 0.297 in
- Overall Cable Diameter (Nominal): 0.297 in (7.54 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 10.9 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 28 pF/ft (92 pF/m); Nom. Inductance: .20 µH/ft (0.66 µH/m); Max. Current: 6.4 Amps per Conductor at 30ºC
- Element: Ground Wire; Nom. Conductor DCR: 10.6 Ohm/1000ft (34.8 Ohm/km)
- UL Voltage Rating: 600 V (AWM 2587); Voltage Rating: 600 V (CSA AWM I/II A/B)
Mechanical Characteristics
- UL Temperature: 90°C; Operating: -40°C To 90°C (Static), -5°C To 90°C (Flexing)
- Flexing Min.: 2.4 in (61 mm)
- Max. Pull Tension: 32 lbs (15 kg)
- Bulk Cable Weight: 120 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Oil Resistance
- AWM Compliance: AWM 2587, AWM 10012, AWM I/II A/B
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.143 Revision Date: 10-07-2026
