Belden 76207WS 008500 MachFlex™, 7 C #24 Str TC, SRPVC Ins, OS+TC Srv, PVC Jkt, CMG - Gray, Reel

$1,990.99
SKU:
76207WS 008500
Shipping:
Calculated at Checkout
Color:
Gray
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
76207WS
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 76207WS 008500 MachFlex™, 7 C #24 Str TC, SRPVC Ins, OS+TC Srv, PVC Jkt, CMG

MachFlex™ for High Flex, 7 Conductor 24AWG (10x34) Tinned Copper, SRPVC Insulation, Overall Beldfoil®+Tinned Copper Serve(90%) Shield, PVC Outer Jacket, CMG

Ordering Details

  • Manufacturer Part Number: 76207WS 008500
  • Color: Gray
  • Put-Up: Reel
  • UPC/EAN: 612825410874

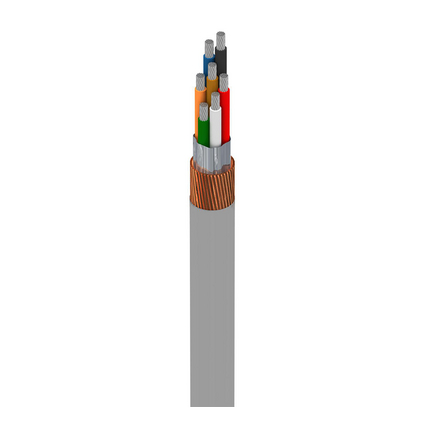

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Construction Details

  • Element: Conductor(s); No. of Elements: 7; Size: 24; Stranding: 10x34; Material: TC - Tinned Copper
  • Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.010 in (0.25 mm)
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Shield Type: Spiral Serve / Screen; Material: Tinned Copper (TC); Coverage: 90%
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.040 in (1.0 mm); Nom. Diameter: 0.253 in

Electrical Characteristics

  • Nom. Conductor DCR: 29 Ohm/1000ft (95 Ohm/km); Nom. Capacitance Cond-to-Cond: 32 pF/ft (100 pF/m); Nom. Inductance: .19 µH/ft (0.62 µH/m)
  • Nom Outer Shield DCR: 4.7 Ohm/1000ft (15 Ohm/km)
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 105°C; Operating: -10°C To 105°C (Static), 5°C To 105°C (Flexing)
  • Flexing Min.: 2.0 in (51 mm)
  • Max. Pull Tension: 27 lbs (12 kg)
  • Bulk Cable Weight: 40 lbs/1000ft (60 kg/km)

Standards and Compliance

  • Environmental Suitability: Sunlight Resistance
  • NEC / UL Compliance: CM
  • AWM Compliance: AWM 2661, AWM 10002, AWM I/II A/B
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.142 Revision Date: 11-06-2026

Resources

Belden 76207WS Product Information
