Belden 76205WS 008100 MachFlex™, 5 C #24 Str TC, SRPVC Ins, OS+TC Srv, PVC Jkt, CMG
MachFlex™ for High Flex, 5 Conductor 24AWG (10x34) Tinned Copper, SRPVC Insulation, Overall Beldfoil®+Tinned Copper Serve(90%) Shield, PVC Outer Jacket, CMG
Ordering Details
- Manufacturer Part Number: 76205WS 008100
- Color: Gray
- Put-Up: Reel
- UPC/EAN: 612825410829

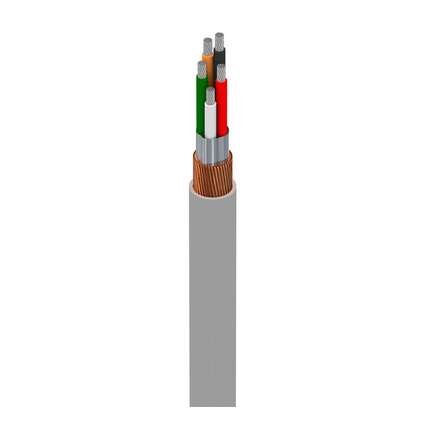

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Robotics, Robot, Continuous Flex
Construction Details
- Element: Conductor(s); Size: 24; Stranding: 10x34; Material: TC - Tinned Copper
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.010 in (0.25 mm)
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
- Shield Type: Spiral Serve / Screen; Material: Tinned Copper (TC); Coverage: 90%
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.040 in (1.0 mm); Nom. Diameter: 0.225 in
Electrical Characteristics
- Nom. Conductor DCR: 29 Ohm/1000ft (95 Ohm/km); Nom. Capacitance Cond-to-Cond: 32 pF/ft (100 pF/m); Nom. Inductance: .19 µH/ft (0.62 µH/m)
- Nom Outer Shield DCR: 5.1 Ohm/1000ft (17 Ohm/km)
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -10°C To 105°C (Static), 5°C To 105°C (Flexing)
- Flexing Min.: 1.8 in (46 mm)
- Max. Pull Tension: 20.7 lbs (9.39 kg)
- Bulk Cable Weight: 33 lbs/1000ft (49 kg/km)
Standards and Compliance
- Environmental Suitability: Sunlight Resistance
- NEC / UL Compliance: CM
- AWM Compliance: AWM 2661, AWM 10002, AWM I/II A/B
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.255 Revision Date: 11-06-2026
