Belden 7447W 0605000 MachFlex™, 3+1G C #10 Str BC, PVC-NYL Ins, TPE Jkt, 1000V WTTC, 600V TC-ER - Chrome, 5,000 ft Reel

$67,330.99
SKU:
7447W 0605000
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
5,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
7447W
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 7447W 0605000 MachFlex™, 3+1G C #10 Str BC, PVC-NYL Ins, TPE Jkt, 1000V WTTC, 600V TC-ER

MachFlex™ for High Flex, 3+1G Conductor 10AWG (105x30) Bare Copper, PVC-NYL Insulation, TPE Outer Jacket, 1000V WTTC, 600V TC-ER

Ordering Details

  • Manufacturer Part Number: 7447W 0605000
  • Color: Chrome
  • Length: 5,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825186922

Supplied as one 5,000 ft Reel.

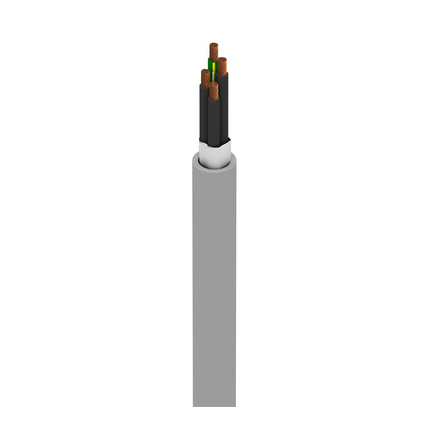

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Robotics, Robot, Continuous Flex

Construction Details

  • Element: Conductor(s); No. of Elements: 3; Size: 10 AWG; Stranding: 105x30; Material: BC - Bare Copper
  • Element: Ground Wire; No. of Elements: 1; Size: 10 AWG; Stranding: 105x30; Material: BC - Bare Copper
  • Element: Conductor(s); Material: PVC/Nylon - Polyvinyl Chloride + Nylon; Nom. Thickness: 0.026 in (0.66 mm); Nom. Insulation Diameter: 0.172 in (4.37 mm); Color Code: Black and Numbered
  • Element: Ground Wire; Material: PVC/Nylon - Polyvinyl Chloride + Nylon; Nom. Thickness: 0.027 in (0.69 mm); Nom. Insulation Diameter: 0.172 in (4.37 mm); Color Code: Green/Yellow
  • Material: No Shield
  • Separator: non-Woven Tape; Material: TPE - Thermoplastic Elastomer; Nom. Thickness: 0.063 in (1.6 mm); Nom. Diameter: 0.546 in
  • Overall Cable Diameter (Nominal): 0.546 in

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 1 Ohm/1000ft; Max. Current: 42 Amps per Conductor at 25ºC
  • Element: Ground Wire; Nom. Conductor DCR: 1.08 Ohm/1000ft (3.54 Ohm/km)
  • UL Voltage Rating: 1000 V (WTTC), 600 V (TC-ER)

Mechanical Characteristics

  • UL Temperature: UL : 90°C Dry, 75°C Wet; AWM 20328 : 105°C; Operating: -40°C To +105°C
  • Stationary Min.: 2.18 in (55.4 mm); Installation Min.: 2.73 in
  • Max. Pull Tension: 546 lbs (248 kg)
  • Bulk Cable Weight: 218 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance
  • Flammability / Reaction to Fire: UL1685 UL Loading, IEEE 1202 FT4
  • NEC / UL Compliance: Article 336
  • AWM Compliance: AWM 20328, AWM I/II A/B
  • CEC / C(UL) Compliance: CIC, TC
  • European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.382 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
