Description
Belden 7445WS 0605000 MachFlex™, 3+1G C #12 Str BC, PVC-NYL Ins, OA TC Brd, TPE Jkt, TPE Jkt, 1000V WTTC, 600V TC-ER
MachFlex™ for High Flex, 3+1G Conductor 12AWG (65x30) Bare Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(85%) Shield, TPE Inner Jacket, TPE Outer Jacket, 1000V WTTC, 600V TC-ER
Ordering Details
- Manufacturer Part Number: 7445WS 0605000
- Color: Chrome
- Length: 5,000 ft
- Put-Up: Reel
- UPC/EAN: 612825186885
- Manufacturer Footnote: C
Supplied as one 5,000 ft Reel.

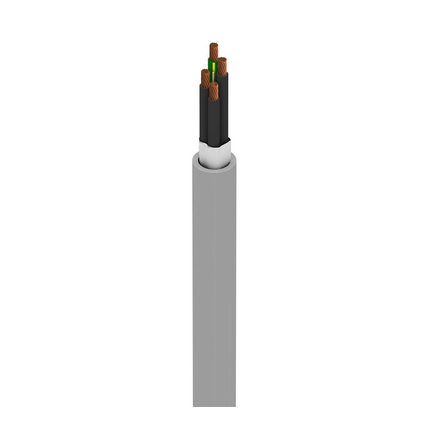

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Robotics, Robot, Continuous Flex
Construction Details
- Element: Conductor(s); No. of Elements: 3; Size: 12 AWG; Stranding: 65x30; Material: BC - Bare Copper
- Element: Ground Wire; No. of Elements: 1; Size: 12 AWG; Stranding: 65x30; Material: BC - Bare Copper
- Element: Conductor(s); Material: PVC/Nylon - Polyvinyl Chloride + Nylon; Nom. Thickness: 0.021 in (0.53 mm); Nom. Insulation Diameter: 0.135 in (3.43 mm); Color Code: Black and Numbered
- Element: Ground Wire; Material: PVC/Nylon - Polyvinyl Chloride + Nylon; Nom. Thickness: 0.021 in (0.53 mm); Nom. Insulation Diameter: 0.135 in (3.43 mm); Color Code: Green/Yellow
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 85%
- Separator: non-Woven Tape; Material: TPE - Thermoplastic Elastomer; Nom. Thickness: 0.030 in (0.76 mm); Nom. Diameter: 0.39 in (9.9 mm); Color: Chrome
- Material: TPE - Thermoplastic Elastomer; Nom. Thickness: 0.063 in (1.6 mm); Nom. Diameter: 0.544 in
- Overall Cable Diameter (Nominal): 0.544 in
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 1.8 Ohm/1000ft; Max. Current: 31 Amps per Conductor at 25ºC
- Element: Ground Wire; Nom. Conductor DCR: 1.72 Ohm/1000ft (5.64 Ohm/km)
- Nom Outer Shield DCR: 2.7 Ohm/1000ft (8.9 Ohm/km)
- UL Voltage Rating: 1000 V (WTTC), 600 V (TC-ER)
Mechanical Characteristics
- UL Temperature: UL : 90°C Dry, 75°C Wet; AWM 20328 : 105°C; Operating: -40°C To +105°C
- Stationary Min.: 6.53 in (166 mm); Installation Min.: 6.53 in
- Max. Pull Tension: 434 lbs (197 kg)
- Bulk Cable Weight: 289 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance
- Flammability / Reaction to Fire: UL1685 UL Loading, IEEE 1202 FT4
- NEC / UL Compliance: Article 336
- AWM Compliance: AWM 20328, AWM I/II A/B
- CEC / C(UL) Compliance: CIC, TC
- European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.380 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
