Belden 7401WS 060250 MachFlex™, 2+1G C #20 Str BC, PVC Ins, OA TC Brd, TPE Jkt, PLTC
MachFlex™ for High Flex, 2+1G Conductor 20AWG (19x32) Bare Copper, PVC Insulation, Overall Tinned Copper Braid(85%) Shield, TPE Outer Jacket, PLTC
Ordering Details
- Manufacturer Part Number: 7401WS 060250
- Color: Chrome
- Length: 250 ft
- Put-Up: Reel
- UPC/EAN: 612825185314
- Manufacturer Footnote: C
Supplied as one 250 ft Reel.

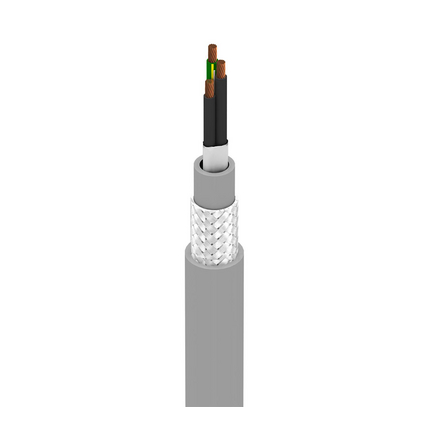

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Construction Details
- Size: 20; Stranding: 19x32; Material: BC - Bare Copper
- Element: Ground Wire; Size: 20; Stranding: 19x32; Material: BC - Bare Copper
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Color Code: Black and Numbered 1, Black and Numbered 2, Green/Yellow
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 85%
- Material: TPE - Thermoplastic Elastomer; Nom. Thickness: 0.025 in (0.64 mm); Nom. Diameter: 0.197 in (5.00 mm)
- Material: TPE - Thermoplastic Elastomer; Nom. Thickness: 0.042 in (1.1 mm); Nom. Diameter: 0.303 in
Electrical Characteristics
- Nom. Conductor DCR: 8.8 Ohm/1000ft (29 Ohm/km)
- UL Voltage Rating: 300 V RMS
Mechanical Characteristics
- UL Temperature: 90°C; Operating: -40°C (-5°C Flexing) To +90°C
- Flexing Min.: 3 in (76 mm)
- Max. Pull Tension: 39 lbs (18 kg)
- Bulk Cable Weight: 56 lbs/1000ft (83 kg/km)
Standards and Compliance
- Environmental Suitability: Sunlight Resistance, UV Resistance, Oil Resistance
- Flammability / Reaction to Fire: UL1685 UL Loading, IEEE 1202 FT4
- NEC / UL Compliance: PLTC
- AWM Compliance: AWM 20327, AWM I/II A/B
- European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.341 Revision Date: 11-06-2026
- Footnote: C - CRATE REEL PUT-UP.
