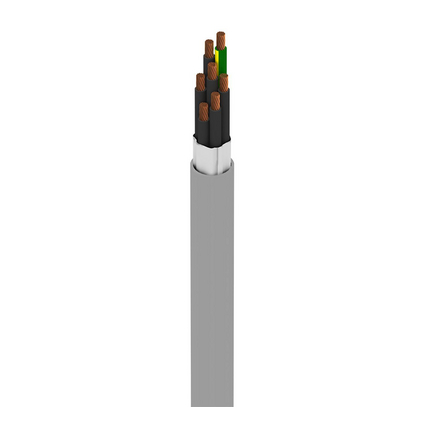

Belden 73807W 0081000 MachFlex™, 7 C #18 Str BC, PVC Ins, PVC Jkt, AWM 2587 CLASS K
MachFlex™ for Moderate Flex, 7 Conductor 18AWG (16x30) Bare Copper, PVC Insulation, PVC Outer Jacket, AWM 2587 CLASS K
Ordering Details
- Manufacturer Part Number: 73807W 0081000
- Color: Gray
- Put-Up: Reel
- UPC/EAN: 612825410218
Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Robotics, Robots, Continuous Flex
Construction Details
Conductor
- Element: Conductor(s); No. of Elements: 6; Size: 18; Stranding: 16x30; Material: BC - Bare Copper
- Element: Ground; No. of Elements: 1; Size: 18; Stranding: 16x30; Material: BC - Bare Copper
Insulation
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.022 in (0.56 mm); Nom. Insulation Diameter: 0.091 in (2.3 mm); Color Code: Black and Numbered
- Element: Ground; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.022 in (0.56 mm); Nom. Insulation Diameter: 0.091 in (2.3 mm); Color Code: Yellow/Green
Outer Shield
- Shield Type: No Shield; Material: No Shield
Outer Jacket
- Separator: Paper Tape; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.035 in (0.89 mm); Nom. Diameter: 0.351 in
- Overall Cable Diameter (Nominal): 0.351 in (8.92 mm)
Electrical Characteristics
Electricals
- Element: Conductor(s); Nom. Conductor DCR: 6.7 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 31 pF/ft (100 pF/m); Nom. Inductance: .190 μH/ft (0.623 μH/m); Max. Current: 9.8 Amps per Conductor at 30°C
- Element: Ground Wire; Nom. Conductor DCR: 6.66 Ohm/1000ft (21.9 Ohm/km)
Voltage
- UL Voltage Rating: 600 V (AWM 2587); Voltage Rating: 600 V (CSA AWM I/II A/B)
Mechanical Characteristics
Temperature
- UL Temperature: 90°C; Operating: -40°C To 90°C (Static), -5°C To 90°C (Flexing)
Bend Radius
Flexing Min.
- Max. Pull Tension: 88 lbs (40 kg)
- Bulk Cable Weight: 168 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Oil Resistance
- AWM Compliance: AWM 2587, AWM I/II A/B
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.256 Revision Date: 09-07-2025
