Belden 73607W 008500 MachFlex™, 7 C #16 Str BC, PVC Ins, PVC Jkt, AWM 2587 CLASS K - Gray, Reel

$1,764.99
SKU:
73607W 008500
Shipping:
Calculated at Checkout
Color:
Gray
Put-Up:
Reel
Product Family:
73607W
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 73607W 008500 MachFlex™, 7 C #16 Str BC, PVC Ins, PVC Jkt, AWM 2587 CLASS K

MachFlex™ for Moderate Flex, 7 Conductor 16AWG (26x30) Bare Copper, PVC Insulation, PVC Outer Jacket, AWM 2587 CLASS K

Ordering Details

  • Manufacturer Part Number: 73607W 008500
  • Color: Gray
  • Put-Up: Reel
  • UPC/EAN: 612825409908

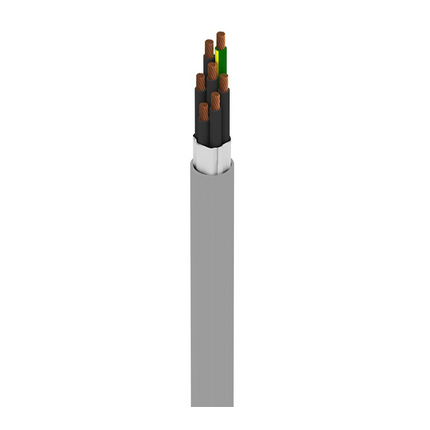

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Robotics, Robot, Continuous Flex

Construction Details

Conductor

  • Element: Conductor(s); No. of Elements: 6; Size: 16; Stranding: 26x30; Material: BC - Bare Copper
  • Element: Ground; No. of Elements: 1; Size: 16; Stranding: 26x30; Material: BC - Bare Copper

Insulation

  • Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.022 in (0.56 mm); Nom. Insulation Diameter: 0.104 in (2.64 mm); Color Code: Black and Numbered
  • Element: Ground; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.022 in (0.56 mm); Nom. Insulation Diameter: 0.104 in (2.64 mm); Color Code: Yellow/Green

Outer Shield

  • Shield Type: No Shield; Material: No Shield

Outer Jacket

  • Separator: Paper Tape; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.035 in (0.89 mm); Nom. Diameter: 0.390 in
  • Overall Cable Diameter (Nominal): 0.390 in (9.91 mm)

Electrical Characteristics

Electricals

  • Element: Conductor(s); Nom. Conductor DCR: 4.1 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 34 pF/ft (110 pF/m); Nom. Inductance: .180 μH/ft (0.591 μH/m); Max. Current: 12.6 Amps per Conductor at 30°C
  • Element: Ground Wire; Nom. Conductor DCR: 4.18 Ohm/1000ft (13.7 Ohm/km)

Voltage

  • UL Voltage Rating: 600 V (AWM 2587); Voltage Rating: 600 V (CSA AWM I/II A/B)

Mechanical Characteristics

Temperature

  • UL Temperature: 90°C; Operating: -40°C To 90°C (Static), -5°C To 90°C (Flexing)

Bend Radius

Flexing Min.

  • Max. Pull Tension: 143 lbs (64.9 kg)
  • Bulk Cable Weight: 216 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Oil Resistance
  • AWM Compliance: AWM 2587, AWM I/II A/B
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.144 Revision Date: 10-07-2026

Part Numbers

Variants

  • Item #: 73607W 008100; Color: Gray; Putup Type: Reel; UPC: 612825409885
  • Item #: 73607W 0081000; Color: Gray; Putup Type: Reel; UPC: 612825409892
  • Item #: 73607W 008500; Color: Gray; Putup Type: Reel; UPC: 612825409908

Resources

Belden 73607W Product Information
