Belden 73009W 008500 MachFlex™, 9 C #20 Str BC, PVC Ins, PVC Jkt, AWM 2587 CLASS K - Gray, Reel

$1,482.99
SKU:
73009W 008500
Shipping:
Calculated at Checkout
Color:
Gray
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
73009W
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 73009W 008500 MachFlex™, 9 C #20 Str BC, PVC Ins, PVC Jkt, AWM 2587 CLASS K

MachFlex™ for Moderate Flex, 9 Conductor 20AWG (10x30) Bare Copper, PVC Insulation, PVC Outer Jacket, AWM 2587 CLASS K

Ordering Details

  • Manufacturer Part Number: 73009W 008500
  • Color: Gray
  • Put-Up: Reel
  • UPC/EAN: 612825409168

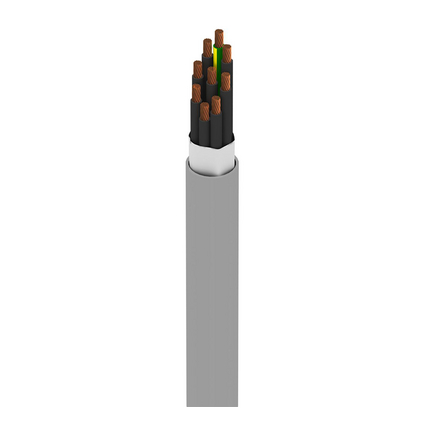

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Robotics, Robot, Continuous Flex

Construction Details

  • Element: Conductor(s); No. of Elements: 9; Size: 20 AWG; Stranding: 10x30; Material: BC - Bare Copper
  • Element: Ground; Size: 20 AWG; Stranding: 10x30; Material: BC - Bare Copper
  • Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.022 in (0.56 mm); Nom. Insulation Diameter: 0.081 in (2.1 mm); Color Code: Black #1, Black #2, Black #3, Black #4, Black #5, Black #6, Black #7, Black #8
  • Element: Ground; Material: PVC - Polyvinyl Chloride
  • Shield Type: No Shield; Material: No Shield
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.040 in (1.0 mm); Nom. Diameter: 0.416 in (10.6 mm)

Electrical Characteristics

  • Nom. Conductor DCR: 10.7 Ohm/1000ft (35.1 Ohm/km); Nom. Capacitance Cond-to-Cond: 28 pF/ft (92 pF/m); Nom. Inductance: .210 µH/ft (0.689 µH/m)
  • UL Voltage Rating: 600 V

Mechanical Characteristics

  • UL Temperature: 90°C; Operating: -40°C To 90°C (Static), -5°C To 90°C (Flexing)
  • Flexing Min.: 2.1 in (53 mm)
  • Max. Pull Tension: 71 lbs (32 kg)
  • Bulk Cable Weight: 186 lbs/1000ft (277 kg/km)

Standards and Compliance

  • Environmental Suitability: Oil Resistance
  • AWM Compliance: AWM 2587, AWM I/II A/B
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.357 Revision Date: 11-06-2026

Resources

Belden 73009W Product Information
