Belden 73002W 008100 MachFlex™, 2 C #20 Str BC, PVC Ins, PVC Jkt, AWM 2587 CLASS K - Gray, Reel

$93.99
SKU:
73002W 008100
Shipping:
Calculated at Checkout
Color:
Gray
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
73002W
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 73002W 008100 MachFlex™, 2 C #20 Str BC, PVC Ins, PVC Jkt, AWM 2587 CLASS K

MachFlex™ for Moderate Flex, 2 Conductor 20AWG (10x30) Bare Copper, PVC Insulation, PVC Outer Jacket, AWM 2587 CLASS K

Ordering Details

  • Manufacturer Part Number: 73002W 008100
  • Color: Gray
  • Put-Up: Reel
  • UPC/EAN: 612825408956

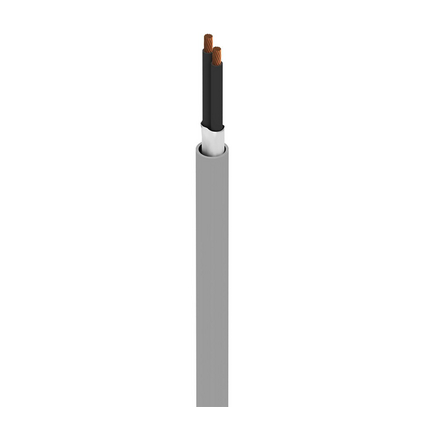

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Robotics, Robot, Continuous Flex

Construction Details

  • Element: Conductor(s); No. of Elements: 2; Size: 20 AWG; Stranding: 10x30; Material: BC - Bare Copper
  • Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.022 in (0.56 mm); Nom. Insulation Diameter: 0.081 in mm; Color Code: Black and Numbered
  • Material: No Shield
  • Separator: Paper Tape; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.035 in (0.89 mm); Nom. Diameter: 0.238 in
  • Overall Cable Diameter (Nominal): 0.238 in

Electrical Characteristics

  • Nom. Conductor DCR: 10.7 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 28 pF/ft (92 pF/m); Nom. Characteristic Impedence: 84 Ohm; Nom. Inductance: .210 µH/ft (0.689 µH/m)
  • UL Voltage Rating: 600 V

Mechanical Characteristics

  • UL Temperature: 90°C; Operating: -40°C To 90°C (Static), -5°C To 90°C (Flexing)
  • Stationary Min.: 2.38 in (60.5 mm); Installation Min.: 2.38 in; Flexing Min.: 1.2 in (30 mm)
  • Max. Pull Tension: 15.7 lbs (7.12 kg)
  • Bulk Cable Weight: 50 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Oil Resistance
  • AWM Compliance: AWM 2587, AWM I/II A/B
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.142 Revision Date: 10-07-2026
