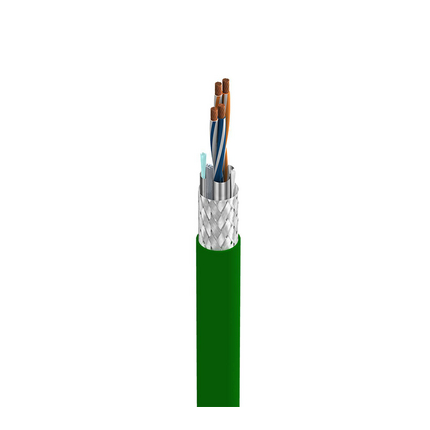

Belden 7201A X4P500 MachFlex™, 2 Pr #24 Str BC, PO Ins, OS+TC Brd, PVC Jkt, CM - Green X4P, 500 ft Reel

$2,071.99
SKU:
7201A X4P500
Shipping:
Calculated at Checkout
Color:
Green X4P
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
7201A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 7201A X4P500 MachFlex™, 2 Pr #24 Str BC, PO Ins, OS+TC Brd, PVC Jkt, CM

MachFlex™ for High Flex, 2 Pair 24AWG (41x40) Bare Copper, PO Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, PVC Outer Jacket, CM

Ordering Details

  • Manufacturer Part Number: 7201A X4P500
  • Color: Green X4P
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825182702
  • Manufacturer Footnote: C

Supplied as one 500 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Flex Data, RS232, RS485

Construction Details

  • Element: Pair(s); No. of Elements: 2; Size: 24 AWG; Stranding: 41x40; Material: BC - Bare Copper
  • Element: Pair(s); Material: PE - Polyethylene (Foam); Nom. Thickness: 0.0115; Nom. Insulation Diameter: 0.0555 in (1.41 mm); Color Code: White/Blue & Blue/White, Orange/ White & White/Orange
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (41x40) TC
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 89%
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.045 in (1.1 mm); Nom. Diameter: 0.322 in
  • Overall Cable Diameter (Nominal): 0.322 in

Electrical Characteristics

  • Nom. Conductor DCR: 27.8 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 15 pF/ft (49 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 26 pF/ft (85 pF/m); Nom. Velocity of Prop.: 72%; Max. Current: 1.6 Amps per Conductor at 30ºC
  • Nom Outer Shield DCR: 2.83 Ohm/1000ft (9.28 Ohm/km)
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 60°C; Operating: -20°C to +60°C
  • Stationary Min.: 3.22 in (81.8 mm); Installation Min.: 3.22 in
  • Max. Pull Tension: 87 lbs (39 kg)
  • Bulk Cable Weight: 56 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor, Oil Resistance, Oil Resistance
  • Flammability / Reaction to Fire: UL1685 UL Loading
  • NEC / UL Compliance: Article 800, CM
  • CEC / C(UL) Compliance: CM
  • European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Other Standard Compliance(s): RS Type: 232/485

Product Notes

  • Notes: 1 million flex cycles based on proper installation techniques in a C-track cable guide.

History

  • Update and Revision: Revision Number: 0.401 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 7201A Product Information
