Belden 7136WS 0031000 MachFlex™, 3+1G C #14 Str BC, PVC-NYL Ins, OA TC Brd, TPE Jkt, TPE Jkt, 1000V WTTC, 600V TC-ER - Orange, 1,000 ft Reel

$42,725.99
SKU:
7136WS 0031000
Shipping:
Calculated at Checkout
Color:
Orange
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
7136WS
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 7136WS 0031000 MachFlex™, 3+1G C #14 Str BC, PVC-NYL Ins, OA TC Brd, TPE Jkt, TPE Jkt, 1000V WTTC, 600V TC-ER

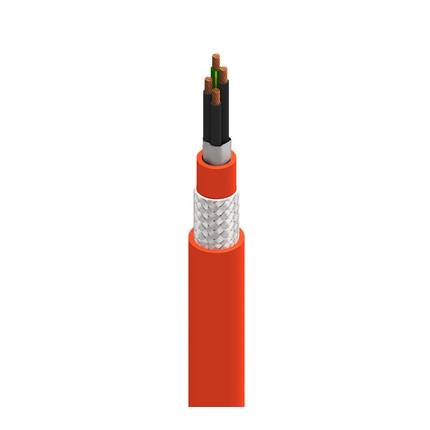

MachFlex™ for High Flex, 3+1G Conductor 14AWG (259(7x37)x38) Bare Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(85%) Shield, TPE Inner Jacket, TPE Outer Jacket, 1000V WTTC, 600V TC-ER

Ordering Details

  • Manufacturer Part Number: 7136WS 0031000
  • Color: Orange
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825182542
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Robotics, Robot, Continuous Flex

Construction Details

  • Element: Conductor(s); No. of Elements: 3; Size: 14 AWG; Stranding: 259x38; Material: BC - Bare Copper
  • Element: Ground Wire; No. of Elements: 1; Size: 14 AWG; Stranding: 259x38; Material: BC - Bare Copper
  • Element: Conductor(s); Material: PVC/Nylon - Polyvinyl Chloride + Nylon; Nom. Thickness: 0.021 in (0.53 mm); Nom. Insulation Diameter: 0.122 in (3.10 mm); Color Code: Black and Numbered
  • Element: Ground Wire; Material: PVC/Nylon - Polyvinyl Chloride + Nylon; Nom. Thickness: 0.021 in (0.53 mm); Nom. Insulation Diameter: 0.122 in (3.10 mm); Color Code: Green/Yellow
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 86%
  • Separator: non-Woven Tape; Material: TPE - Thermoplastic Elastomer; Nom. Thickness: 0.030 in (0.76 mm); Nom. Diameter: 0.360 in (9.14 mm); Color: Orange
  • Material: TPE - Thermoplastic Elastomer; Nom. Thickness: 0.053 in (1.3 mm); Nom. Diameter: 0.488 in
  • Overall Cable Diameter (Nominal): 0.488 in

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 2.62 Ohm/1000ft; Max. Current: 29 Amps per Conductor at 30ºC
  • Element: Ground Wire; Nom. Conductor DCR: 2.73 Ohm/1000ft (8.96 Ohm/km); Max. Current: 46.4 Amps per Conductor at 30ºC
  • Nom Outer Shield DCR: 3.3 Ohm/1000ft (11 Ohm/km)
  • UL Voltage Rating: 1000 V (WTTC), 600 V (TC-ER)

Mechanical Characteristics

  • UL Temperature: UL : 90°C Dry, 75°C Wet; AWM 20328 : 105°C; Operating: -40°C To 105°C
  • Stationary Min.: 1.95 in (49.5 mm); Installation Min.: 2.44 in
  • Max. Pull Tension: 190 lbs (86 kg)
  • Bulk Cable Weight: 167 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance
  • Flammability / Reaction to Fire: UL1685 UL Loading, IEEE 1202 FT4
  • NEC / UL Compliance: Article 336
  • AWM Compliance: AWM 20328, AWM I/II A/B
  • CEC / C(UL) Compliance: CIC, TC
  • European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.195 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 7136WS Product Information
