Belden 6504UE 877500 Security & Sound, #22-6c BC, CMP - Natural

$155.99
SKU:
6504UE 877500
Shipping:
Calculated at Checkout
Color:
Natural
Manufacturer Status:
Active
Product Family:
6504UE
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 6504UE 877500 Security & Sound, #22-6c BC, CMP

Security & Sound Cable, Plenum-CMP 6-22 AWG stranded bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord

Ordering Details

  • Manufacturer Part Number: 6504UE 877500
  • Color: Natural
  • UPC/EAN: 612825177920

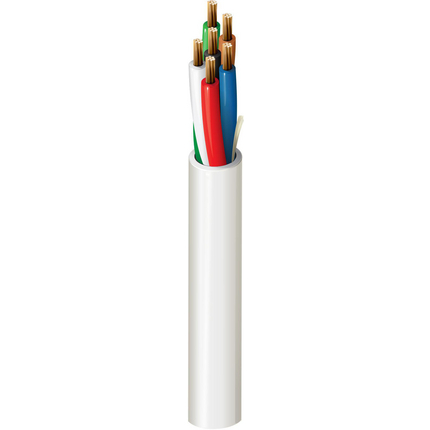

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Construction Details

  • Element: Conductor(s); No. of Elements: 6; Size: 22 AWG; Stranding: 7x30; Material: BC - Bare Copper
  • Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.008 in (0.20 mm); Nom. Insulation Diameter: 0.045 in (1.1 mm); Color Code: Black, Red, White, Green, Brown, Blue
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.165 in (4.19 mm); Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.165 in (4.19 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 16 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 27 pF/ft (89 pF/m); Max. Current: 1.9 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 18.54 Ohm/1000ft (60.83 Ohm/km)
  • UL Voltage Rating: 300 V (CMP)

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: 0°C to +75°C
  • Stationary Min.: 1.65 in (41.9 mm); Installation Min.: 1.65 in (41.9 mm)
  • Max. Pull Tension: 54 lbs (24 kg)
  • Bulk Cable Weight: 21 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor - Plenum, Indoor
  • Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMP
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Non-Plenum Number: 5504UE

History

  • Update and Revision: Revision Number: 0.428 Revision Date: 09-07-2025

Resources

Belden 6504UE Product Information
