Belden 6502GE 8771000 Security & Sound, #22-2c, BC, Shielded, CMP
Security & Sound Cable, Plenum-CMP, 1-22 AWG stranded bare copper pair with Flamarrest® insulation and Beldfoil® shield, 2-22 AWG stranded bare copper conductors with insulation, overall Flamarrest® jacket with ripcord
Ordering Details
- Manufacturer Part Number: 6502GE 8771000
- Color: Natural
- UPC/EAN: 612825177708
- Manufacturer Footnote: C

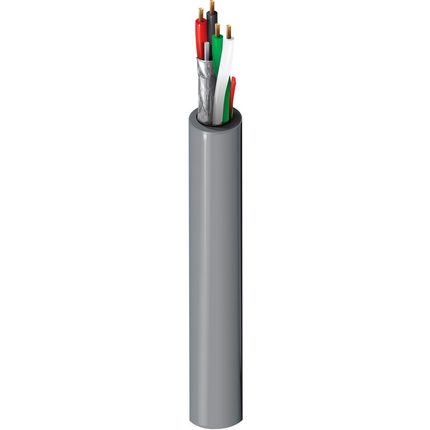

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment
Construction Details
- Element: Pair(s); No. of Elements: 1; Size: 22; Stranding: 7x30; Material: BC - Bare Copper
- Element: Conductor(s); No. of Elements: 2; Size: 22; Stranding: 7x30; Material: BC - Bare Copper
- Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.009 in (0.23 mm); Nom. Insulation Diameter: 0.047 in (1.2 mm); Color Code: Black & Red
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.009 in (0.23 mm); Nom. Insulation Diameter: 0.047 in (1.2 mm); Color Code: White, Green
- Element: Each Pair; Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 16 AWG (7x24) TC
- Element: Conductor(s); Shield Type: No Shield
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.155 in (3.94 mm); Ripcord: Yes
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 17.24 Ohm/1000ft; Nom. Inner Shield DCR: 3.23 Ohm/1000ft (10.6 Ohm/km); Nom. Capacitance Cond-to-Cond: 55 pF/ft (180 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 99 pF/ft (320 pF/m); Nom. Inductance: 0.17 µH/ft (0.56 µH/m); Max. Current: 2.2 Amps per Conductor at 25ºC
- Element: Conductor(s); Nom. Conductor DCR: 17.2 Ohm/1000ft (56.4 Ohm/km)
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 75°C
- Stationary Min.: 1.55 in (39.4 mm); Installation Min.: 1.55 in (39.4 mm)
- Max. Pull Tension: 36.4 lbs (16.5 kg)
- Bulk Cable Weight: 19 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Outdoor
- Flammability / Reaction to Fire: NFPA 262 (UL910), FT6
- NEC / UL Compliance: Article 800, CMP
- CEC / C(UL) Compliance: CMP
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Non-Plenum Number: 5502GE
History
- Update and Revision: Revision Number: 0.434 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
