Description

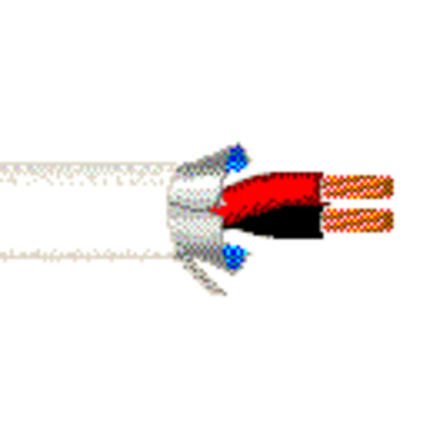

Belden 6500FC 877U1000 Security & Sound, 2 Conductor 22 AWG BC, Shielded, Plenum
Security, Pro Audio & Intercom Cable, 2 Conductor 22 AWG stranded (7x30) bare copper conductors with FEP insulation, Beldfoil® shield, Plenum, Flamarrest® jacket with ripcord.
Ordering Details
- Manufacturer Part Number: 6500FC 877U1000
- Color: Natural
- Length: 1,000 ft
- Put-Up: UnReel
- UPC/EAN: 612825350712
Supplied as one 1,000 ft UnReel.
Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Pro Audio, Intercom/PA Systems, Security Systems
Construction Details
- Element: Conductor(s); No. of Elements: 2; Size: 22 AWG; Stranding: 7x30; Material: BC - Bare Copper
- Element: Conductor(s); Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.006 in (0.15 mm); Nom. Insulation Diameter: 0.041 in (1.0 mm); Color Code: Black, Red
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.116 in; Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.116 in
Electrical Characteristics
- Nom. Conductor DCR: 16 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 45 pF/ft (150 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 81 pF/ft (270 pF/m); Nom. Characteristic Impedence: 38 Ohm; Nom. Inductance: 0.16 µH/ft (0.52 µH/m); Max. Current: 2.8 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 19.4 Ohm/1000ft (63.6 Ohm/km)
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 75°C; Operating: -20°C To +75°C
- Stationary Min.: 1.16 in (29.5 mm); Installation Min.: 1.16 in
- Max. Pull Tension: 23.7 lbs (10.8 kg)
- Bulk Cable Weight: 10 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor - Plenum, Indoor
- Flammability / Reaction to Fire: NFPA 262 (UL 910), FT6
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMP
- CEC / C(UL) Compliance: CMP
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Non-Plenum Number: 5500FE
History
- Update and Revision: Revision Number: 0.385 Revision Date: 09-07-2025
