Description
Belden 6400FE 8771000 Security & Sound, 2 Conductor 20 AWG BC, Shielded, CMP
Security & Commercial Audio Cable, 2 Conductor 20 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield, Plenum-CMP, Flamarrest® jacket with ripcord.
Ordering Details
- Manufacturer Part Number: 6400FE 8771000
- Color: Natural
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825176589
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.

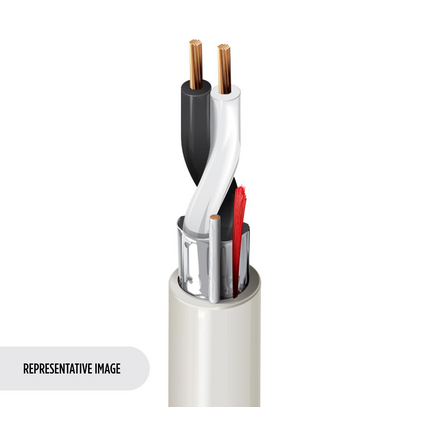

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Intercom/PA Systems and Sound/Audio Systems.
Construction Details
- Element: Conductor(s); No. of Elements: 2; Size: 20 AWG; Stranding: 7x28; Material: BC - Bare Copper
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.009 in (0.23 mm); Nom. Insulation Diameter: 0.054 in (1.4 mm); Color Code: Black, Red
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.142 in (3.61 mm); Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.142 in (3.61 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 10.3 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 56 pF/ft (180 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 100.8 pF/ft (330.7 pF/m); Nom. Inductance: 0.16 µH/ft (0.52 µH/m); Max. Current: 8 Amps per conductor @ 25°C
- Nom Outer Shield DCR: 16.7 Ohm/1000ft (54.8 Ohm/km)
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 75°C; Operating: 0°C to +75°C
- Stationary Min.: 1.4 in (36 mm); Installation Min.: 1.4 in (36 mm)
- Max. Pull Tension: 34 lbs (15 kg)
- Bulk Cable Weight: 15 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor - Plenum, Indoor
- Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6
- NEC / UL Compliance: Article 800, CMP
- CEC / C(UL) Compliance: CMP
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Non-Plenum Number: 5400FE
History
- Update and Revision: Revision Number: 0.501 Revision Date: 10-08-2026
- Footnote: C - CRATE REEL PUT-UP.
