Belden 6307FE 8771000 Security & Sound, #18-9c, BC, Shielded, CMP
Security & Sound Cable, Plenum-CMP, 9-18 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord
Ordering Details
- Manufacturer Part Number: 6307FE 8771000
- Color: Natural
- UPC/EAN: 612825175599
- Manufacturer Footnote: C

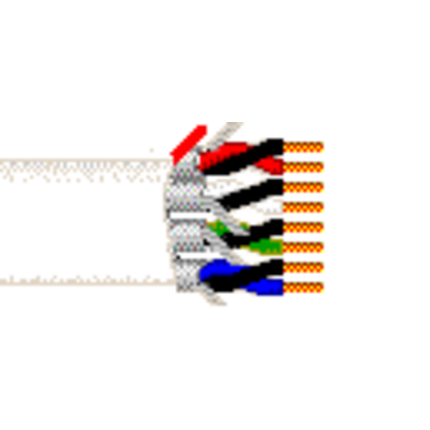

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment
Construction Details
- Element: Conductor(s); No. of Elements: 9; Size: 18 AWG; Stranding: 7x26; Material: BC - Bare Copper
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.009 in (0.23 mm); Nom. Insulation Diameter: 0.063 in (1.6 mm); Color Code: Black, Red, White, Green, Brown, Blue, Orange, Yellow, Violet
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 20 AWG (7x28) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.266 in; Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.266 in
Electrical Characteristics
- Nom. Conductor DCR: 6.86 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 42 pF/ft (140 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 76 pF/ft (250 pF/m); Max. Current: 3.5 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 7.3 Ohm/1000ft (24 Ohm/km)
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 75°C; Operating: 0°C To +75°C
- Stationary Min.: 2.66 in (67.6 mm); Installation Min.: 2.66 in
- Max. Pull Tension: 214 lbs (97.1 kg)
- Bulk Cable Weight: 67 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor
- Flammability / Reaction to Fire: NFPA 262 (UL910), FT6
- NEC / UL Compliance: Article 800, CMP
- CEC / C(UL) Compliance: CMP
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Non-Plenum Number: 5307FE
History
- Update and Revision: Revision Number: 0.314 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
