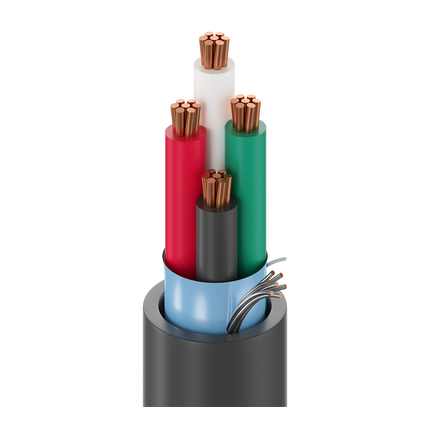

Belden 6302FE 877500 Security & Sound, #18-4c, BC, Shielded, CMP - Natural

$240.99
SKU:
6302FE 877500
Shipping:
Calculated at Checkout
Color:
Natural
Manufacturer Status:
Active
Product Family:
6302FE
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 6302FE 877500 Security & Sound, #18-4c, BC, Shielded, CMP

Security & Sound Cable, Plenum-CMP, 4-18 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord

Ordering Details

  • Manufacturer Part Number: 6302FE 877500
  • Color: Natural
  • UPC/EAN: 612825175315

Product Overview

  • Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Noisy Environment

Construction Details

  • Element: Conductor(s); No. of Elements: 4; Size: 18 AWG; Stranding: 7x26; Material: BC - Bare Copper
  • Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.009 in (0.23 mm); Nom. Insulation Diameter: 0.061 in (1.5 mm); Color Code: Black, Red, White, Green
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.188 in (4.78 mm); Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.188 in (4.78 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 6.5 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 42 pF/ft (140 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 76 pF/ft (250 pF/m); Max. Current: 11.2 Amps per Conductor at 25ºC (10°C Temperature Rise)
  • Nom Outer Shield DCR: 14.4 Ohm/1000ft (47.2 Ohm/km)
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: 0°C to +75°C
  • Stationary Min.: 1.9 in (48 mm); Installation Min.: 1.9 in (48 mm)
  • Max. Pull Tension: 95 lbs (43 kg)
  • Bulk Cable Weight: 32 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor, Indoor
  • Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
  • NEC / UL Compliance: Article 800, CMP
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Non-Plenum Number: 5302FE

History

  • Update and Revision: Revision Number: 0.469 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
