Belden 6301UE 8771000 Security & Sound, 3 Conductor 18 AWG BC, CMP - Natural, 1,000 ft Reel

$515.99
SKU:
6301UE 8771000
Shipping:
Calculated at Checkout
Color:
Natural
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
6301UE
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 6301UE 8771000 Security & Sound, 3 Conductor 18 AWG BC, CMP

Security & Commercial Audio Cable, Plenum-CMP, 3-18 AWG stranded (7x26) bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord

Ordering Details

  • Manufacturer Part Number: 6301UE 8771000
  • Color: Natural
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825175223
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

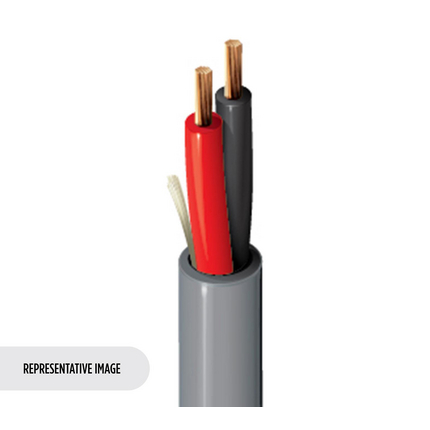

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Intercom/PA Systems, Sound/Audio Systems

Construction Details

  • Element: Conductor(s); No. of Elements: 3; Size: 18 AWG; Stranding: 7x26; Material: BC - Bare Copper
  • Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.009 in (0.23 mm); Nom. Insulation Diameter: 0.061 in (1.5 mm); Color Code: Black, Red, White
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.163 in (4.14 mm); Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.163 in (4.14 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 6.5 Ohm/1000ft (21 Ohm/km); Nom. Capacitance Cond-to-Cond: 34 pF/ft (110 pF/m); Max. Current: 14 Amps per conductor @ 25°C
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: 0°C to +75°C
  • Stationary Min.: 1.6 in (41 mm); Installation Min.: 1.6 in (41 mm)
  • Max. Pull Tension: 67 lbs (30 kg)
  • Bulk Cable Weight: 23 lbs/1000ft (34 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor - Plenum, Indoor
  • Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6
  • NEC / UL Compliance: Article 800, CMP
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Non-Plenum Number: 5301UE

History

  • Update and Revision: Revision Number: 0.634 Revision Date: 06-10-2026
  • Footnote: C - CRATE REEL PUT-UP.
