Belden 6300FH 8771000 Security & Sound, 2 Conductor 18 AWG, TC, Shielded, Plenum - Natural, 1,000 ft Reel

$468.99
SKU:
6300FH 8771000
Shipping:
Calculated at Checkout
Color:
Natural
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
6300FH
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 6300FH 8771000 Security & Sound, 2 Conductor 18 AWG, TC, Shielded, Plenum

Security & Commercial Audio Cable, 2 Conductor 18 AWG stranded (7x26) tinned copper conductors with Flamarrest® insulation, Beldfoil® shield, Plenum, Flamarrest® jacket with ripcord.

Ordering Details

  • Manufacturer Part Number: 6300FH 8771000
  • Color: Natural
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825174820

Supplied as one 1,000 ft Reel.

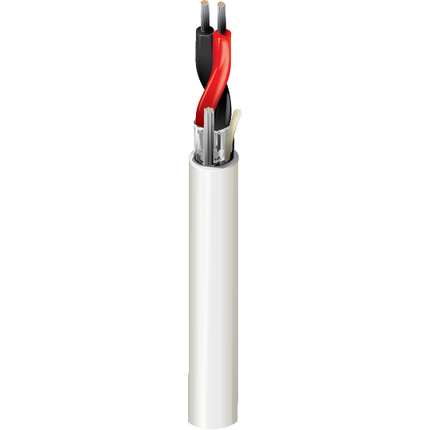

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Security Systems, Intercom/PA Systems, Sound/Audio Systems, Power Limited Controls

Construction Details

  • Element: Pair(s); No. of Elements: 1; Size: 18 AWG; Stranding: 7x26; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.009 in (0.23 mm); Nom. Insulation Diameter: 0.064 in (1.6 mm); Color Code: Black and Red
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (Solid) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.162 in; Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.162 in

Electrical Characteristics

  • Nom. Conductor DCR: 6.4 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 70 pF/ft (230 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 126 pF/ft (413 pF/m); Nom. Inductance: 0.15 µH/ft (0.49 µH/m); Max. Current: 5 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 18.5 Ohm/1000ft (60.7 Ohm/km)
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: -20°C To +75°C
  • Stationary Min.: 1.62 in (41.1 mm); Installation Min.: 1.62 in
  • Max. Pull Tension: 50 lbs (23 kg)
  • Bulk Cable Weight: 19 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor - Plenum, Indoor
  • Flammability / Reaction to Fire: NFPA 262 (UL 910), FT6
  • NEC / UL Compliance: Article 800, CMP
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Non-Plenum Number: 5300FH

History

  • Update and Revision: Revision Number: 0.151 Revision Date: 09-07-2025
