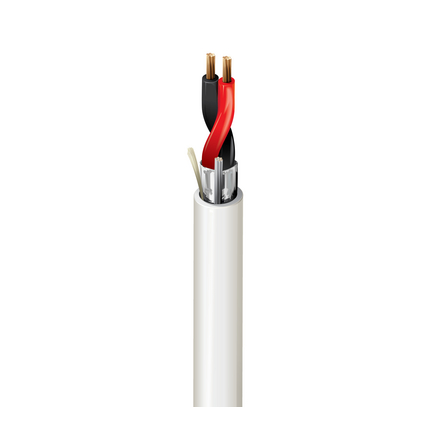

Belden 6300FE 0091000 Security & Sound, 2 Conductor 18 AWG, BC, Shielded, CMP - White, 1,000 ft Reel

$446.99
SKU:
6300FE 0091000
Shipping:
Calculated at Checkout
Color:
White
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
6300FE
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 6300FE 0091000 Security & Sound, 2 Conductor 18 AWG, BC, Shielded, CMP

Security & Commercial Audio Cable, Plenum-CMP, 2-18 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord

Ordering Details

  • Manufacturer Part Number: 6300FE 0091000
  • Color: White
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825174691

Supplied as one 1,000 ft Reel.

Product Overview

  • Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Noisy Environment

Construction Details

  • Element: Conductor(s); No. of Elements: 2; Size: 18 AWG; Stranding: 7x26; Material: BC - Bare Copper
  • Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.009 in (0.23 mm); Nom. Insulation Diameter: 0.063 in (1.6 mm); Color Code: Black, Red
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.162 in (4.11 mm); Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.162 in (4.11 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 6.4 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 70 pF/ft (230 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 126 pF/ft (413 pF/m); Nom. Inductance: 0.15 µH/ft (0.49 µH/m); Max. Current: 14 Amps per conductor @ 25°C
  • Nom Outer Shield DCR: 15.9 Ohm/1000ft (52.2 Ohm/km)
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: 0°C to +75°C
  • Stationary Min.: 1.6 in (41 mm); Installation Min.: 1.6 in (41 mm)
  • Max. Pull Tension: 50.3 lbs (22.8 kg)
  • Bulk Cable Weight: 21 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor - Plenum, Indoor
  • Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMP
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Non-Plenum Number: 5300FH

History

  • Update and Revision: Revision Number: 0.528 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
