Belden 6000FL 0021000 Security & Sound, #12-2c, BC, O/A Foil, FPLP - Red

$985.99
SKU:
6000FL 0021000
Shipping:
Calculated at Checkout
Color:
Red
Manufacturer Status:
Active
Product Family:
6000FL
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 6000FL 0021000 Security & Sound, #12-2c, BC, O/A Foil, FPLP

Security & Sound Cable , Plenum-FPLP, 2-12 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord

Ordering Details

  • Manufacturer Part Number: 6000FL 0021000
  • Color: Red
  • UPC/EAN: 612825166085
  • Manufacturer Footnote: C

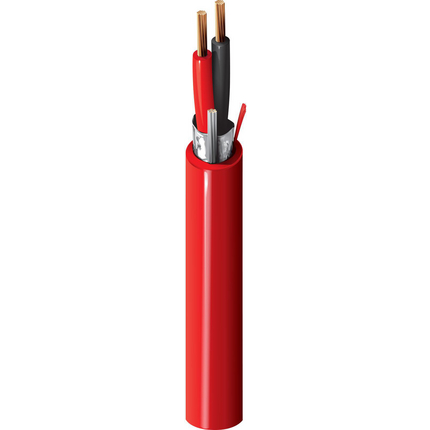

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification, Noisy Environment

Construction Details

  • Size: 12; Stranding: 19x25; Material: BC - Bare Copper
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.011 in (0.28 mm); Color Code: Black, Red
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.260 in

Electrical Characteristics

  • Nom. Conductor DCR: 1.6 Ohm/1000ft (5.2 Ohm/km); Nom. Capacitance Cond-to-Cond: 93 pF/ft (310 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 167.5 pF/ft (549.5 pF/m); Max. Current: 17.75 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 7.0 Ohm/1000ft (23 Ohm/km)
  • UL Voltage Rating: 300 V RMS

Mechanical Characteristics

  • Operating: 0°C To +75°C
  • Max. Pull Tension: 152 lbs (68.9 kg)
  • Bulk Cable Weight: 56 lbs/1000ft (83 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor
  • Flammability / Reaction to Fire: NFPA 262
  • NEC / UL Compliance: Article 760, FPLP
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Non-Plenum Number: 5000FL

History

  • Update and Revision: Revision Number: 0.88 Revision Date: 11-06-2026
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 6000FL Product Information
