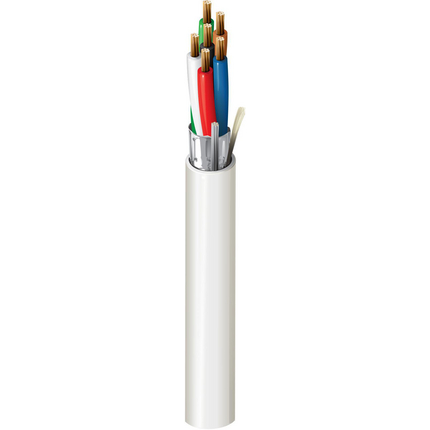

Belden 5504FE 008U500 Security & Sound, #22-6c BC, Shielded, CMR
Security & Sound Cable, Riser-CMR, 6-22 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield and PVC jacket with ripcord
Ordering Details
- Manufacturer Part Number: 5504FE 008U500
- Color: Gray
- UPC/EAN: 612825163756
Product Overview
- Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment
Construction Details
- Element: Conductor(s); No. of Elements: 6; Size: 22 AWG; Stranding: 7x30; Material: BC - Bare Copper
- Element: Conductor(s); Material: PP - Polypropylene; Nom. Thickness: 0.008 in (0.20 mm); Nom. Insulation Diameter: 0.045 in (1.1 mm); Color Code: Black, Red, White, Green, Brown, Blue
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.017 in (0.43 mm); Nom. Diameter: 0.172 in (4.37 mm); Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.172 in (4.37 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 16.9 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 22.5 pF/ft (73.8 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 40.5 pF/ft (133 pF/m); Max. Current: 4.2 Amps per Conductor @ 25°C
- Nom Outer Shield DCR: 15.3 Ohm/1000ft (50.2 Ohm/km)
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 75°C; Operating: -20°C to +75°C
- Stationary Min.: 1.7 in (43 mm); Installation Min.: 1.7 in (43 mm)
- Max. Pull Tension: 60 lbs (27 kg)
- Bulk Cable Weight: 22 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor - Riser, Indoor
- Flammability / Reaction to Fire: UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMR
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark
- UK Regulation Compliance: UKCA Mark
- Plenum Number: 6504FE
History
- Update and Revision: Revision Number: 0.459 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
